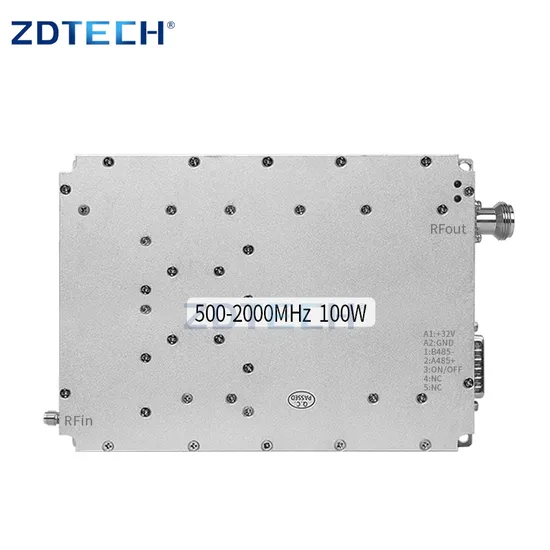

Customized 500-2000MHz 100W Power Amplifier RF Signal Jamming Anti Drone Module

US$500.00 10 Pieces (MOQ)

Basic Info.

Model NO.
ZD-PA- 500/2000M-100W
Support Network
WiFi GPS GSM
Information content
Data
Certification
ISO
Condition
New
Frequency Band
500-2000MHz
Working Voltage
DC+28V~32V
Input RF Port
SMA-F
Working Current
10A
Vswr
<1.5
Output RF Port
N-Female
Size
170 X 77 X 26.5 (Without Connectors)
Storage Temperature
-25~+65ºC
Operating Voltage
DC+28V
in-Band Flatness
<2dB
Transport Package
by Box
Specification
170 x 77 x 26.5mm
Trademark
ZD TECH
Origin
China
HS Code
8517709000
Production Capacity
2000pieces/Month

Product Description

Product Description
Item Target Remark
Frequency 500-2000MHz
Working volatge 28-32V,DC
Max output power 50±1dBm
Working current ≤10A @100W typical case
Controllable output power 100W
ALC power regulation range ≥3dB Voltage-controlled attenuation
Gain 50±1.0dB
Intraband fluctuation ±2dB Peak to peak
Max allowable input ≥+10dBm Lasts for 1 minute without damage
Input VSWR ≤1.50
Working environment temperature(ºC) -10~+55ºC Low temperature can start,monitoring is normal
RF input connector SMA-F
RF output connector N-F
DC Supply connector 7W2
Module protection Over temperature protection,
VSWR protection
1. Main technical parameter
