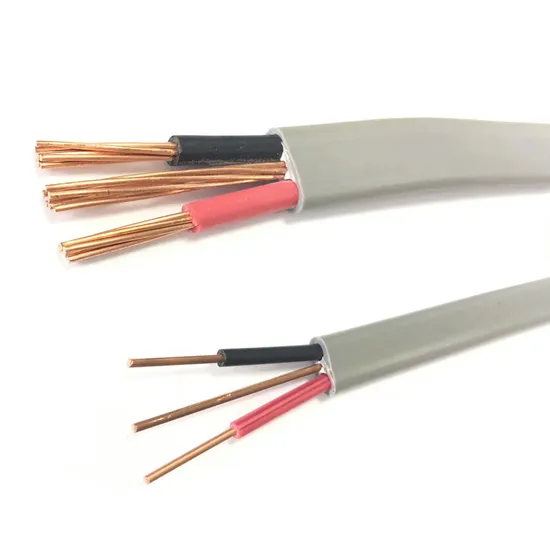

Twin with Earth TPS Electric Flat Cable Hot Wire 1.5mm PVC Copper Insulated Electric Wire Cable Copper Cable

Product Description

Twin with Earth TPS Electric Flat Cable Hot Wire 1.5mm PVC Copper Insulated
Construction :
1.Conductor: 6192Y/6242Y Bare copper wire(solid) class1
Bare copper multi wire(stranded) class2
2.Insulation:PVC Compound
4.Sheath: PVC Compound
3. Sheath Color:
Grey , Black , White
Techical Data :
Standard:BS6004
Fixed installed: -30ºC up to +70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage: 6192Y/6242Y 300/500V

Min inner bending radius:6D(D=Outdiameter)
Behaviour in fire:
Flame retardant cable acc.to IEC60332--1
Application:
Twin flat&Twin with earth ables 6192Y/6242Y is used fordomestic and light industrial wiring.it can be installed in dry or damp conditions clipped to surface,on trays or in free air where there is little risk of mechanical damage.Suitable for laying into trunking or conduit when mechanical protection isrequired.also suitable for embedded in plaster or laid in walls.
Specification Parameter :

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)
6192Y / 6193Y Twin flat BS6004
2x1.0	2X1.13	0,6	0,8	4.2x6.5	49	18,10
2x1.5	2X1.38	0,7	0,8	4.6x7.4	65	12,10
2x2.5	2X1.78	0,8	0,8	5.4x8.8	97	7,41
2x4.0	2X7/0.85	0,8	0,9	6.1x10.2	138	4,61
2x6.0	2X7/1.04	0,8	0,9	6.9x11.5	189	3,08
2x10.0	2X7/1.35	1,0	0,9	8.2x14.0	295	1,83
2 x 16.0	2X7/1.70	1,0	1,0	9.4x16.2	430	1,150
3x1.0	3X1.13	0,6	0,8	4.2x8.9	71	18,10
3x1.5	3X1.38	0,7	0,8	4.6x10.2	95	12,10
3x2.5	3X1.78	0,8	0,8	5.4x12.2	142	7,41
3x4.0	3X7/0.85	0,8	0,9	6.1x14.5	206	4,61
3x6.0	3X7/1.04	0,5	0,9	6.9x16.2	280	3,08
3x10.0	3X7/1.35	1,0	0,9	8.2x19.8	438	1,83
3 x 16.0	3X7/1.70	1,0	1,0	9.4x22.9	640	1,150
6242Y/Twin With Earth Cables
2x1.0+1.0	2x1.13+1.13	0,6	0,8	4.2x7.6	63	18,10
2x1.5+1.0	2x1.38+1.13	0,7	0,9	4.6x8.5	70	12,10
2x2.5+1.5	2x1.78+1.38	0,8	1,0	5.4x10.2	119	7,41
2x4.0+1.5	2x7/0.85+1.38	0,8	1,0	6.1x11.6	162	4,61
2x6.0+2.5	2x7/1.04+1.78	0,8	1,1	6.9x13.3	227	3,08
2x10.0+4.0	2x7/1.35+7/0.85	1,0	1,2	8.2x16.5	355	1,83
2x16.0+6.0	2x7/1.70+7/1.04	1,0	1,3	9.4x19.2	517	1,150
