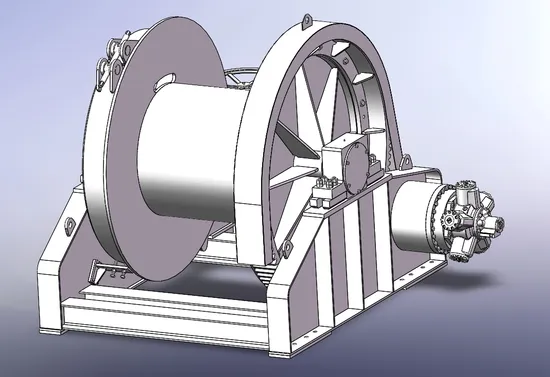

150kN Electric Winch – Ideal for Offshore Lifting Systems

Product Description

Detailed Parameters

Name	150KN Electric Winch
Dimensions (mm)	2200*2300*1750
Machine Weight (T)	5
Drum Tension (KN)	150
Support Load(KN)	450
Drum Speed (m/min)	15
Rope Diameter (mm)	φ28
Layers	6
Rope Capacity(m)	300
Outward Direction	down
Motor Model	JZ2-H72-4/8/16
Motor Power (KW)	60/60/45
Working Duty (min)	10/30/5
Electric System	380V/50Hz
Protection Level	IP56
Insulation Class	F
Motor Controller	Yes
Auxiliary Drum Tension (KN)	100
Auxiliary Drum Speed (m/min)	10
Name	150KN Electric Winch Electrical Section
Main Control Protection Level	IP56
Material (Stainless Steel 316L)	2mm Thick Steel Plate
Main Switch Brand	Other brands
AC Contactor Brand	Other brands
Thermal Relay Brand	Other brands
Control Box Protection Level	IP44
Control Box Material (Stainless Steel 316L)	2mm Steel Plate

High Reliability
The drive part of the hydraulic winch uses a hydraulic system, making the transmission more stable.
High Efficiency
The design of the hydraulic system makes the hydraulic winch more efficient during operation.
Simple Operation
The work process of the hydraulic winch is relatively simple, making it easy to operate.
Multiple Models
Various models can be customized according to customer requirements.

About Quality Our products go through rigorous quality inspections by various departments, and goods will only be shipped if there are no quality issues.	About Specifications Please confirm the required product model with the sales or customer service before placing an order. Customized products are non-returnable and non-exchangeable.
About Logistics Based on the address you provide, we will select the appropriate fast logistics. If you have any special requests, please contact customer service in time.	About After-Sales We offer complete after-sales service and usage guidance, doing our best to resolve customer inquiries and needs.

Packaging & Shipping

Company Profile
Wealida factory was established in the early of 1990's. All the products are designed and manufactured according to the international standard. Every products you will receive is under strictly inspection and testing, to make sure the good quality.

Certifications

Purchase Guide
We are professional manufacturer of hydraulic winch, who can customize winch according to the needs of customers.
Before we recommend a suitable winch and quote for you,please provide the necessary information as follows:1) what's the winch pulling capacity?
2)what's the wire rope length of the winch ?
3)what is the wire rope diameters?
4)Do you need the winch with single or double drum?and please inform us per drum pulling capacity?
5),what is the winch working environment?
6),Do you need power pac

---
