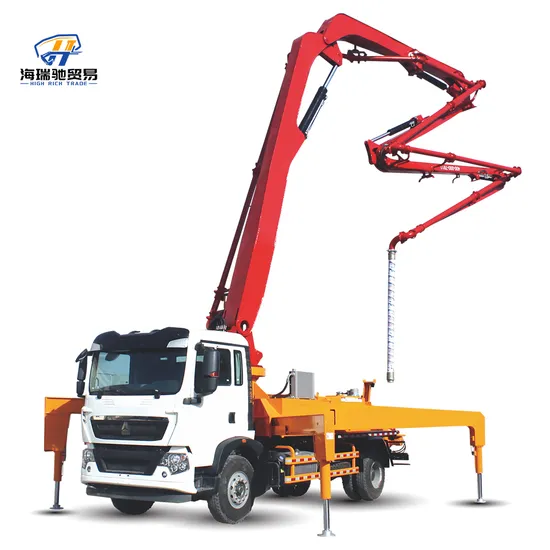

Highrich High Performance 33m Diesel Hydraulic Control Concrete Pump Truck for Sale

Product Description

Product Description

Technical Features:
Power system: The original diesel engine features strong power, excellent performances, and high reliability.
Hydraulic system: The pumping hydraulic system adopts dual-pump dual-circuit constant-power open-loop hydraulic system and German Rex*roth oil pump..The main cylinder and swing cylinder are driven by two pumps separately. The swing cylinder features quick and powerful motions. The hydraulically controlled reversing mode guarantees more reliable and stable reversing motions for the main pumping line.
Pumping system: The maximum capacity of the hopper is up to 800L and the inner walls of hopper adopt arc-shaped design to eliminate dead spaces for material deposits. The high wear-resistant wearing plate and cutting ring sufficiently cut down the user's operating cost. The S-pipe valve features low height difference and achieves smoother concrete flow.
Electronic control system: The main electronic control units adopt originally imported products, featuring simple system, low unit number, and high reliability.
Lubrication system: The central lubrication mode is adopted so that the hydraulically controlled follow-up grease pump guarantees the lubrication effects. All lubrication points of the multi-plate progressive grease distributor are fitted with blockage indicator to ease the maintenance and checking. In event of blockage in any oil line, the other oil lines can still function normally.

Overall Parameter
Model	33M
Overall length(mm)	10400
Overall width(mm)	2480
Overall Height(mm)	3650
Total weight(kg)	21000
Boom form	RZ
End hose length(m)	3
First arm length/angle(mm/°)	7250/90
Second arm length/angle(mm/°)	5800/180
Third arm length/angle(mm/°)	5500/180
Fourth arm length/angle(mm/°)	6200/235
Fifth arm length/angle(mm/°)	6200/210
Sixth arm length/angle(mm/°)	0
Hydraulic system type	Open type system
Distribution valve form	S tube valve
Theory output capacity(m³/h)	80
Maximum aggregate size(mm)	40
Theory pumping pressure(Mps)	10
Hopper capacity(L)	680L
Recommended concrete slump(mm)	14-23
Hydraulic oil cooling	Air cooling
