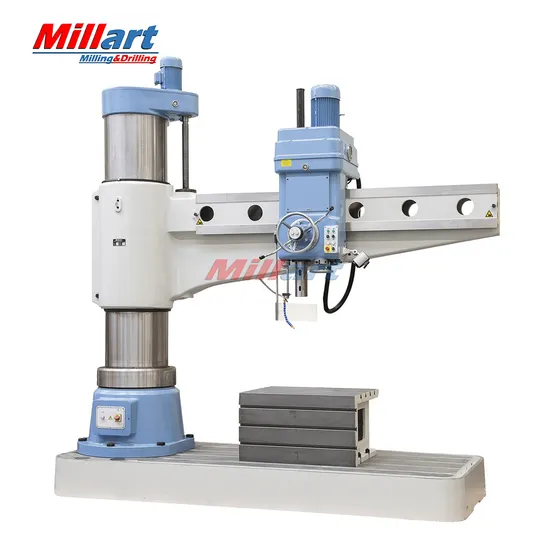

Professional of Radial Drill Manufacturer Z3080X20 Z3080X25 Radial Drilling Machine

US$1,000.00-1,200.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z3080x20 Z3080x25

Structure

Radial Drilling Machine

Layout

Vertical

Controlling Mode

Artificial

Number of Shaft

Hole Diameter

<50mm

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Spindle Travel

200mm

Drilling Capacity

80 mm

Transport Package

Wood Case

Specification

CE ISO900 rohs

Trademark

L& T

Origin

Tengzhou China

HS Code

84592900

Production Capacity

100 PC/Month

Product Description

Professional of Radial Drill Machine ManufaturerZ3080X20 Z3080X25 Radial Drilling Machine
Feature:
Hydraulic clamping
Hydraulic speed
Hydraulic pre-selection
Electrical machinery double insurance
Technical parameter:

SPECIFICATIONS	Z3080×20A	Z3080×25A
Max.drilling dia mm	80	80
Distance from spindle axis and column surface mm	550-1600	550-1600
Distance between spindle axis and column surface mm	450-2000	500-2500
Spindle travel mm	400	400
Spindle cone(MT)	6	6
Spindle speeds ranger.p.m	20-1600	20-1600
Spindle speed step	16	16
Spindle feeding ranger.p.m	0.04 -3.2	0.04 -3.2
Spindle feeding step	16	16
Rocker rotary angle °	360	360
Main motor power kw	7.5	7.5
Movements motor power kw	1.5	1.5
Weight kg	7500	11000
Overall dimensions mm	2980×1250×3300	3500×1450×3300

Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise
