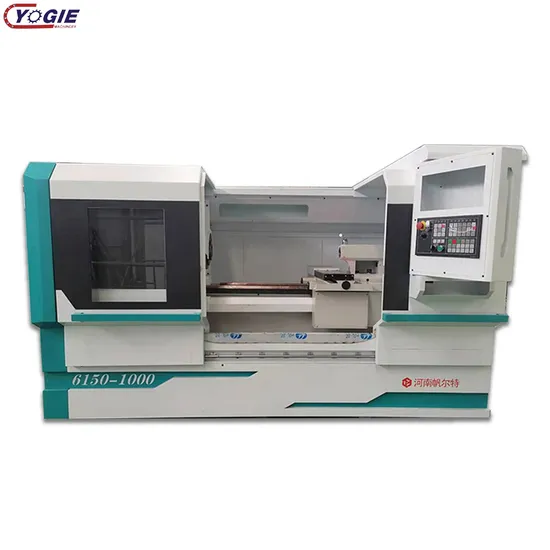

Ckj6150/6156 High Rigidity Horizontal Turning Milling Machine CNC Lathe Machine

Product Description

Product Parameters

	SPECIFICATION	UNIT	CKJ6150		CKJ6156
Capacity	Swing over bed	mm	500	500	560
	Swing over cross slide	mm	270	270	300
	Distance between centers	mm	1000/1500/2000	1000/1500/2000	1000/1500/2000
	Guideway width	mm	400	400	460
	Max. load capacity	T	1	1	1
Spindle	Spindle bore	mm	82	140	82
	Spindle bore taper	-	Metric φ90/MT5	-	Metric φ90/MT5
	Spindle nose type	-	C8	-	C8
	Spindle speed steps	-	VF.3 steps	VF.3 steps	VF.3 steps
	Spindle speed range	rpm	80-1500	60-800	80-1500
	Chuck	mm	φ250 3-jaw manual	φ250 3-jaw manual	φ250 3-jaw manual
Turret	Turret/tool post	-	NC turret 4 position	NC turret 4 position	NC turret 4 position
	Tool shank size	mm	32x32	32x32	32x32
Feed	X axis travel	mm	270	270	270
	Z axis travel	mm	850/1350/1850	850/1350/1850	850/1350/1850
	X axis rapid traverse	mm/min	4000	4000	4000
	Z axis rapid traverse	mm/min	6000	6000	6000
Tailstock	Tailstock quill diameter	mm	φ75	φ75	φ75
	Tailstock quill taper	-	MT5	MT5	MT5
	Tailstock quill travel	mm	150	150	150
Motor	Main spindle motor	kw	7.5	7.5	7.5
	Coolant pump motor	kw	0.125	0.125	0.125
Dimension	Width x Height	mm	1600x1600	1650x1700	1750x1800
	Length	mm	2700/3200/3700	2950/3450/3950	3000/3500/4000
Weight	Net weight	T	2.7/3.0/3.4	2.7/3.0/3.4	3.1/3.4/3.8

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
