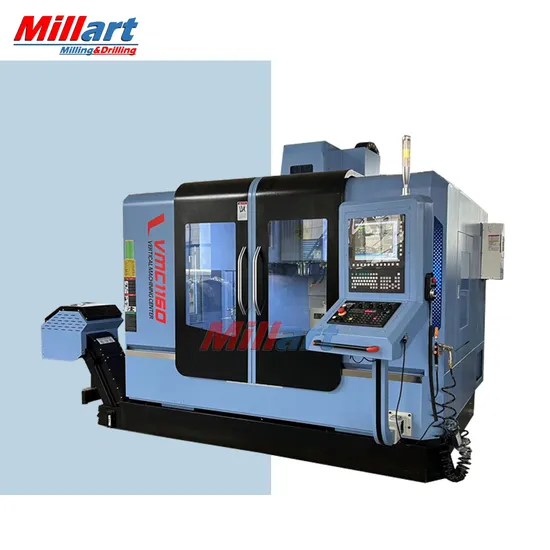

Factory Direct Supply High Accuracy 3-Axis 4-Axis 5-Axis Vmc1160 Vertical Machining Center

Product Description

Product Description:
Feature : 1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter :

Item	Unit	VMC1160
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Spindle nose to worktable	mm	120-720
Spindle center to column	mm	650
Leadscrew diameter X,Y,Z	mm	Φ40
Linear guideway width X,Y,Z	mm	45/45/45(Roller)
Worktable Length	mm	1200
Worktable width	mm	600
Max loading capacity	kg	800
T-slots(NO./width/pitch)		5*18*100
Spindle taper		BT40-150
Spindle speed	rpm	8000
Main motor power	kw	11/15
Fast moving speed (X/Y/Z)	m/min	36/36/30
Cutting speed	mm/min	1-10000
Feed motor torque	N/M	22/22/22
Feed motor power	kw	3.0/3.0/3.0
Capacity	pcs	Arm type 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Length	mm	3300
Width	mm	2400
Height	mm	3000
Weight	kg	6300

Standard accessories: Fanuc 0i MF CNC control system,
High speed spindle 8000 rpm from Taiwan ,
16 tools ATC from Taiwan,
3-Axis linear guideway from Taiwan,
Full-cover protection,
Work lamp,
Tri-color indication lamp,
Coolant system,
Auto-lubrication,
Movable pulse generator,
Air gun,
Heat exchanger
Optional accessories:
24 tools ATC from Taiwan
Automatic chip conveyor& chip bucket(Chain type)
Automatic chip conveyor& chip bucket(Screw type)
Spindle center water spray
Spindle 12000rpm(direct coupling)
Spindle Oil cooler
Nitrogen balance system
Air conditioner for electricity cabinet
4th or 5th Axis
Company information:
FAQ:
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
