Aluminum Die Casting 100A Square Meter Socket/Box

Product Description

Product Description

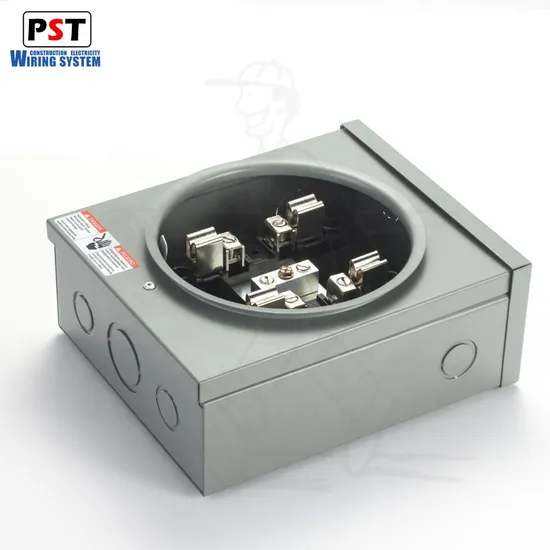

The enclosure of square meter base is made of die cast aluminum.
The electro-statically applied epoxy and polyester resins,which are baked on,from a durable,light gray exterior.The current carrying parts are mad of copper alloy.The ground connector is designed to insure a positive electrical connectio nby effectively clamping the conductor against a serrated surface.

Product	Square Meter Socket/Box
Material	Aluminum Die Cast
Type	Ring Type
Cat No.	MT-100D
Description	1 Phase,100A120/240Vac,4 Jaw
Hub Size	1"
Package	Inner Box+Carton Box

Packaging Details:	white box/color box, size:25x25x8cm 20 units per caton carton size:40x40x35cm
Delivery Detail:	15 days

Product Number	Description	Fixed Hubs Size
MT-100S-4J-H	1 Phase, 100A, 4 jaw ,Ring Type	1-1/4''
MT-100S-4J	1 Phase, 100A, 120/240Vac, 4 jaw	-

Feature :* 100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wire Copper Jaw,Copper or aluminum connector
* The Die-cast Aluminum enclosure.Electrostatically applied epoxy and polyester resins,which are baked on.Gray color exterior.
* The current carrying parts are made of phosphor copper.
* The ground connector is designed to in sure a positive electrical connection by effectively clamping the conductor against a serrated surface.
* Stainless steel sealing ring
* Fix hub size:1-1/4'' for optionDetailed Photos
Company Profile
Our Advantages
Certifications
FAQ
Q1: you have UL certificate?
A:Yes,most products are UL listed.
Q2: Are you manufacture?
A: Yes,we have factory and warehouse in Fuyang Hangzhou city.
Q3: How can I request product samples?
A: The samples are free but courier charge will be collected. Please send us samples list and courier account number.
Q4: How can I request a product catalog?
A: The hard copies of catalogs are free but courier charge will be collected.The PDF catalog we can send to you by email or WeTransfer.
Q5: What is your payment terms?
A: 30% T/T deposit,balance against B/L faxed copy; Irrevocable L/C 100% at sight and irrevocable.
Q6: How about the delivery time?
A: Accord to your order list and quantity,mostly delivery in 30days.
Q7. Why choose us?
1. We are China Leading supply of Electrical Pipe,Strut Channel and Fittings.
2. PST is famous brand and already approved by project engineer in different country.
3. Inspected by the Inspection Institution of UL Certification.
4. 100% QC inspection before Shipment.
5. Best Quality & Best Service with Competitive price

---
