Ultrasonic Rhinestone Welding Machine

Product Description

2015 hot fix rhinestone machine for transfer motif, rhinestone machine prices, automatic rhinestone setting machine

Characteristics & Purpose
The product is a portable welder, which integrates with safety, the craft of advance, high efficiency, convenience etc,
which has a big advantage in structure and craftwork, especially in the aspect of safety. We combine the advantages of domestic and overseas technics with the actual situation of our own, making efforts to ensure the using safety of the products.

Model	KT-07102	KT-RM01	KT-RM02
Product name	portable rhinestone machine	ultrasonic single disc rhinestone hotfix machine	ultrasonic double discs rhinestone hotfix machine
Voltage	110/220V	110/220V	110/220V
Power	80-150W	0.3KW	0.3KW
Diamond size	1-10mm	1-10mm	1-10mm
Speed	60-120pcs/min	110-220pcs/min	110-220pcs/min
Size	L268*W168*H198	L650*W800*H1080	L650*W800*H1080
Weight	7KG	80KG	88KG

Features :
1.the Rhinestone Ultrasonic Hot Fixing machine gives off heat using the ultrasonic wave vibration friction to set the rhinestones /stud on clothing cotton material or leather material.

2. the Rhinestone Ultrasonic Hot Fixing machine provides the welding with high speed (general 0.5 seconds to weld a bead), and the operation is simple.

3. The suctorial welder heads can attract the different size different of rhinestones/studs (1.8mm-8mm). It is also changeable according to the suitable size of studs.
Usage:

1. It can be iron on rhinestone, rhinestuds, and other hotfix items with any garments especially cotton T-shirts.blouse, denim jeans and knit-wear. bags.women shoes and other fashion products.

2. Ultrasonic hot-fix Rhinestone Setting machine from China For setting hot-fix rhinestone, Copy Australia flatback rhinestone, other hotfix material.

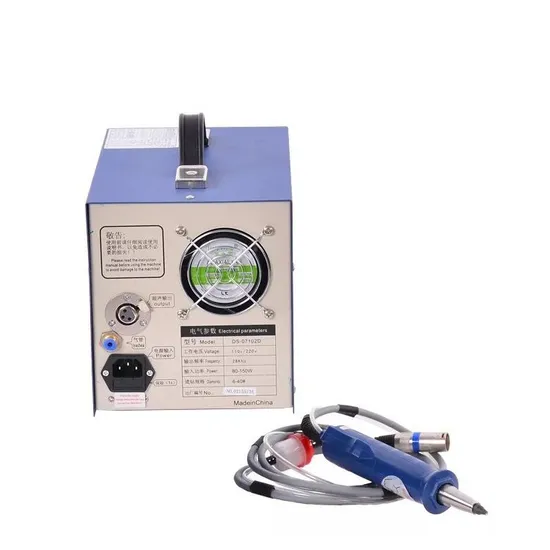

1.mainframe machine 2.transducers
3.timing(senconds)
4.power adjustable
5.power switch
6.timing switch
7.air pump switch
8.working indicator
9.power indicator
10.dismounting tips
11.tip
12.ultrasonic control switch
13.output wire of ultrasonic signal
14.air intake tube( 180cm )
15.handle
16.different size tips(Seven tips :#6/ # 10/ # 12/ # 16/ # 20/ # 30/ # 40)
17. cooling fans
18.output interface of ultrasonic
19.interface of air intake tube
20.power interface
21.fuse box(1A)
Trouble Shooting:

Trouble	Reason	Solve
Not power	1. The power wires broken 2.Fuse working 3.The switch broken	1.Fixed and change 2.Change 3.Change
No sucking or not enough air when sucking	1. The pump can not work 2. The welding head blocked 3.The air tubing broken	1.Repair and change 2.Dredging the tubing 3. Change the tubing
Can't weld well or not enough energy when welding	1. The welding head broken 2.Not connecting well 3. Out put port broken 4. The out put wire broken	1. Repair and change 2.Screw.it 3.Connecting it 4. Change the wire
Mucus on the welding head	The surface of the welding head is abrasive	Contact service to fix it

Advantages:
1. High-quality heat transfer machine, China factory wholesale price.
2. Various functions, size, color,model machine for your choice.
3. Size: suitable for ss6-ss40 rhinestones
4. Voltage: 110V and 220 are available
5. Accompany with CE certification
6. It's easy to operate hotfix machine.
7. Payment: T/T,Western Union,Paypal.
8. Delivery date: 1-2 days (exactly depend on your quantity)
9. MOQ:1 Set.
10. We have big discount from the DHL.UPS for shipping cost.
11. Good reputation & service.
12. You may save about 30% ordering from us.If you have any inquiry or need samples, please feel free to contact us, related information will be provided very soon. We are always at your service.

---
