Groundnut Peanut Harvesting Picker Machine

US$1,100.00 5 Pieces (MOQ)

Basic Info.

Model NO.
4U-1
Application
Peanut, Groundnut
Power Source
Tractor
Harvest method
Uprooted
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Tractor Linkage
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Name
Peanut Groundnut Harvester
Model
4u-1
Function
Harvest Peanut Groundnut
Row Number
1
Harvest Width
70cm
Work Depth
20cm
Power
20-40HP Tractor
Linkage
3-Point
Weight
290kg
Harvest Type
Uproot
Transport Package
Iron Crate
Specification
1200*600*700mm
Trademark
NO
Origin
China
HS Code
87000
Production Capacity
1000

Product Description

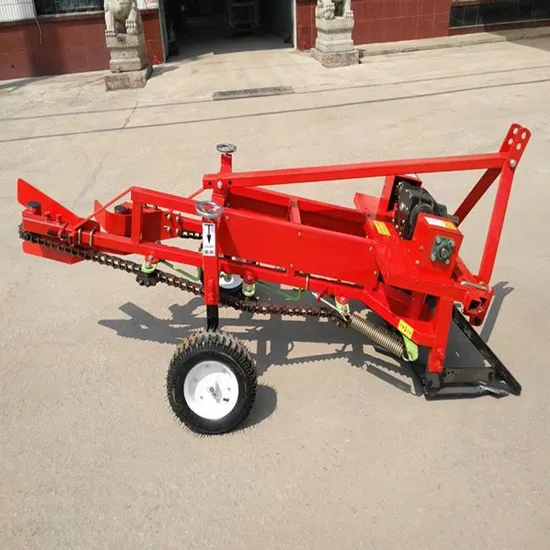

Groundnut peanut harvesting picker machine
Introduction
4U-1 multi-purpose garlic and peanut harvester is mounted with the tractor of 18-40hp with back power and side power output shaft.The working principle of this digger is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate though vibration sieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back.
Specification
Model Unit 4U-1
Harvesting rows 1
Working width mm 700
Working depth mm 150-250
PTO Rotation speed r/min 540-720
PTO shaft spline 6/8 spline
Total weight kg 290kg
Matched power hp 20-40HP
Linkage Three-point suspension
