Automatic 6 Color Woven Ci Roll to Roll Printing Machine Manufacturers

Product Description

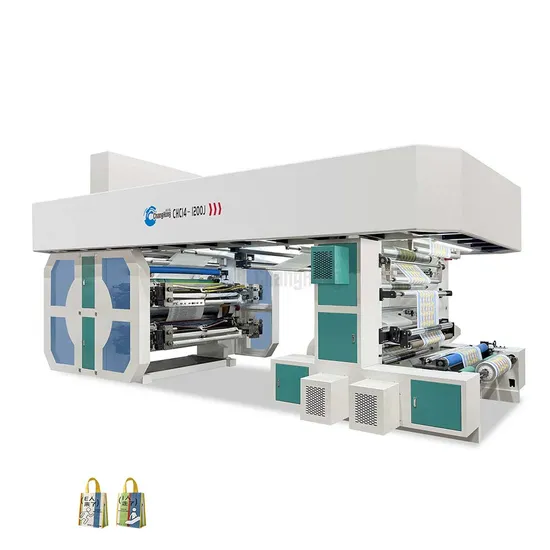

Automatic 6 Color Woven Ci Roll to Roll Printing Machine Manufacturers Product Description
CI Flexo Printing Machine, also known as Central Drum Flexo Printing Machine, are used in the printing industry for producing high-quality packaging materials such as Plastic Film, paper, paper cup, non-woven fabric, aluminum foil, etc.
1. Flexibility: CI Flexo Printing Machine offer a high degree of flexibility when it comes to printing on various substrates like paper, films, and Non Woven. They can easily print on different materials with different thicknesses and can be customized to suit specific printing needs .
2. High accuracy: CI Flexo Printing Machine deliver high-quality printing with accurate registration, precisely aligning all colored inks to produce sharp, high-quality images.
3. Speed: CI Flexo Printing Machine speed 300m/min producing large volumes of printed material quickly and efficiently.
4. Cost-effective: CI Flexo Machine are highly cost-effective compared to other forms of printing as they require fewer ink changes, produce less waste, and require minimal maintenance. .
5. Durable: CI Flexo Machines are designed to be highly durable, capable of standing regular use and wear and tear without requiring frequent repairs or maintenance.

TECHNICAL SPECIFICATIONS
Model	CHCI4-600E	CHCI4-800E	CHCI4-1000E	CHCI4-1200E
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	550mm	750mm	950mm	1150mm
Max. Machine Speed	200m/min
Printing Speed	250m/min
Max. Unwind/Rewind Dia.	Φ 800mm/Φ1200mm/Φ1500mm
Drive Type	Gear drive
Plate thickness	Photopolymer plate 1.7mm or 1.14mm (or to be specified)
Ink	Water base ink or solvent ink
Printing length (repeat)	400mm-900mm
Range Of Substrates	LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN
Electrical supply	Voltage 380V. 50 HZ.3PH or to be specified

Q1:CI Flexo Printing Machine How does it work? A1:The substrate is fed through the machine and is positioned over the central drum. The printing plate, which carries the image to be printed, is mounted onto the cylinder that rotates around the central drum. As the cylinder rotates, the ink is transferred from the ink rollers on to the printing plate. The substrate then comes in contact with the printing plate on the central drum, and the image is transferred onto it. Q2: What are the advantages of a CI Flexo Printing Machine? A2:- High-quality printing - Higher speed and production rates - Better ink transfer to the substrate - Reduced ink waste - Efficient use of plate cylinder and ink rollers - Ability to print on various substrates - Consistent image placement
Q3: What materials can be printed on?
A3:Central Drum Flexo Printing Machines can print on a wide range of materials, including papers, plastics, films, non-woven materials, and more.
Q4: What is the maximum printing speed of a Central Drum Flexo Printing Machine?
A4:The maximum printing speed of a Central Drum Flexo Printing Machine depends on the specific model and configuration. However, many machines have a printing speed of to 300m/min .

---
