40° Tilt Angle Compensation RS232 RS485 Serial Port Triaxial Angle Sensor 3D Electronic Compass

Product Description

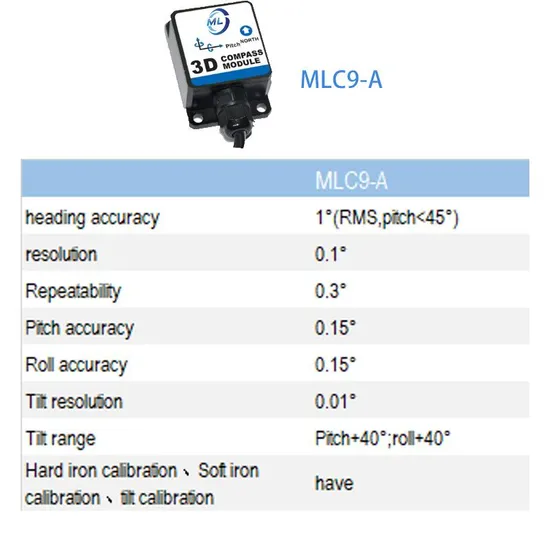

Parameter		ML C9-A
Compass heading parameters	Heading accuracy	1° (RMS, pitch<45°)
	Resolution	0.1°
	Repeatability	0.3°
	Measurement range	0~360°
	Tilting range	±40°
Compass inclination parameters	Pitch accuracy	0.15°
	Roll accuracy	0.15°
	Inclination angle resolution	0.01°
	Inclination range	Pitch±90°; Roll±180°
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Tilt calibration	Yes
Physical properties	Size	L55*W37*H24 (mm)
	Weight	75g
	CAN interface connector	direct outgoing line
Interface features	Startup delay	<50ms
	Maximum sampling rate	50 times/second
	Communication rate	100~500Kbps baud rate
	CAN communication	optional
	CANOpen communication	optional
	Output format	hexadecimal
Power supply	Support voltage	DC+5V(9~36V)
	Current (max)	40mA
	Working mode	30mA
Environment	Storage range	-40ºC--+125ºC
	Working temperature	-40ºC--+85ºC
	Vibration resistance	2600g

COMPANY INFORMATION
ML is a national high-tech enterprise that has been focusingon using inertial navigationand information fusion technology to solve the accuracy and real-time needs ofvarious types ofmoving objects for navigation information such as position and attitude. Our products coverhigh-tech sensor products from MEMS industrial-grade inertial navigation chips to high-precisioninertial navigation modules, which are mainly used in autopilots ofunmanned systems (includingautopilot/drones/unmanned ships) , satellite tracking,robots, intelligent pursuit, high-speedrail/bridge/dam mapping and other fields.
ML has accumulated strong product R&D and innovation capabilities through years ofaccumulation in chip design, process manufacturing, industry algorithms and calibration capabilitiesin the MEMS inertial industry. At present, the company has obtained several invention patents andsoftware copyrights, covering MEMS inertial navigation chips and modules, and has successfully usedthese patents to realize product transformation.

---
