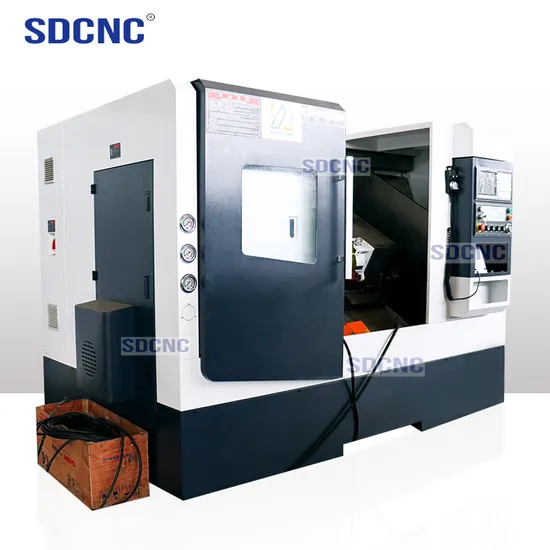

New Type of Precision Tck46 High Quality Horizontal Inclined Rail CNC Lathe

Product Description

Product Parameters
Product main technical parameters:
1. 45 degrees slant bed CNC lathe machine. 2. Higher accuracy Taiwan linear guide. 3. Chip conveying capacity is large and convenient, customer could choose. 4. Chip conveying in the front or in the back. 5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting
the use of pre-stretching structure. 6. Gang type tool post. 7. High-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds. 8. Use advanced centralized lubrication system uses. 9. Machine with full protection design,waterproof debris reliable, easy maintenance.

item	unit	TCK46
Turning diameter of bed surface	mm	Φ400
Maximum turning diameter on a skateboard	mm	Φ300
Working length	mm	400
Main motor power	KW	7.5
Spindle speed	rpm	2500
Main shaft hole diameter	mm	Φ80
X-axis travel	mm	200
X-axis motor torque	NM	8
Z-axis travel	mm	500
Z-axis motor torque	NM	12
X.Z axis connection mode		Direct connection
Maximum spindle speed	rpm	3000
Spindle speed progression		Stepless speed change
Spindle end form and code		A2-8
Inner diameter of spindle through hole	mm	Φ80
Inner diameter of main shaft drawpipe	mm	Φ56
Standard chuck specifications		8″
Fast moving speed	m/min	20
Tool rest form		8Horizontal 8 station hydraulic tool tower
X/ZX/Z bidirectional positioning accuracy	mm	±0.008
X/ZX/Z one-way repeated positioning accuracy	mm	±0.004
Sleeve diameter	mm	70
Sleeve travel	mm	100
Tailstock travel	mm	450
Tailstock sleeve taper hole		5# Morse 5#
Bed form and slope		/35°Integral /35°

---
