The innovative Laser Screed is a game-changer in the construction of extensive concrete surfaces. Whether you're working on contemporary industrial workshops, expansive markets, vast storage facilities, bustling airports, or grand plazas, our Laser Screed is designed to meet the demanding construction requirements. It is the perfect solution for projects that demand expansive coverage and superior quality.
and levelness.

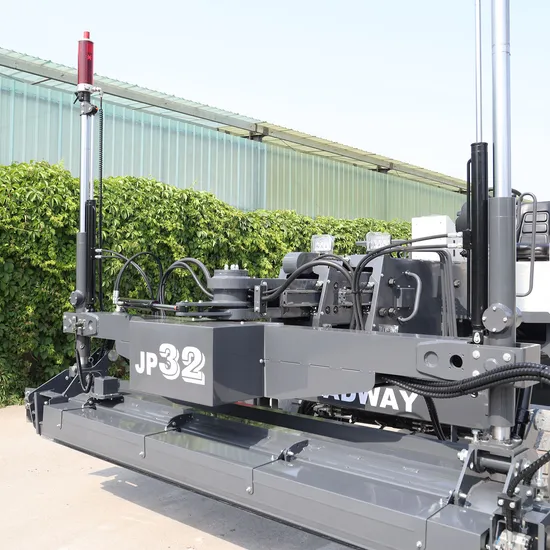

| Model | RWJP32 |
| Type | Boom type |
| Engine | |
| Model | YANMAR |
| Type | Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder |
| Power | 35kW/3000rpm |
| Engine oil volume | 6.0L |
| Fuel consumption | 261g/kwh |
| Running device | |
| Driving | 4 Hydraulic drive motor |
| Wheel | Antiskid tyre |
| Steering | Front Wheel/ 4-Wheel/ Crab-shaped turn |
| Outrigger | 4 legs, Self-leveling |
| Working Speed | 20M2/min |
| Driving Speed | 0-6km/h |
| Screed head | |
| Type | Self-leveling |
| Arm Length | 6000mm |
| Width | 3000mm |
| Paving type | With auger |
| Auger force | Hydraulic motor |
| Exciting force | 3000N |
| Vibration frequency | 60Hz |
| Swing Angle | ±45° |
| Screed head control | Ratio control |
| Height of screed head | 500mm |
| Control accuracy | ±1.5mm |
| Laser control system | |
| Control type | Microcomputer laser scan |
| Control effect | Flat, slope or double slope |
| Operation mode | |
| Chair position | Ride-on forward type |
| Forward and reverse | Hand control, stepless speed walking |
| Telescopic arm | Hand control, stepless speed |
| Steering | Steering wheel |
| Cleaning system | |
| Power | Hydraulic motor |
| Theoretical flow | 20L/min |
| The Max pressure of inlet | 0.5Mpa |
| Rated pressure | 7MPa |
| Fuel Volume | 100L |
| Size and Weight | |
| Outside size(Working) | 4500×3500×2500mm |
| Weight | 6000kg |
| | |
