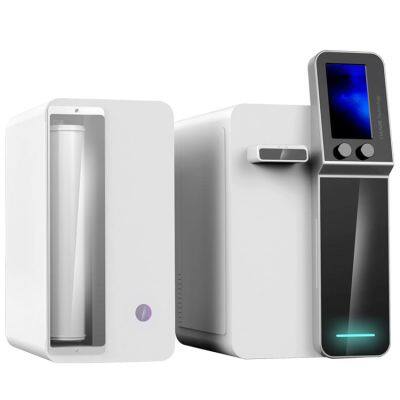

LTM20I Laboratory Ultra-Pure Water System
Dual-Stage RO Filtration for Precision Water Quality
Product Overview
The LTM20I is a high-performance water purification system engineered for laboratory, clinical, and research applications. Featuring dual-stage reverse osmosis (RO) technology, intelligent monitoring, and CE certification, it delivers consistent pure and ultra-pure water that meets strict international standards.
Key Features▶ 7-Inch Touch Human-Machine Interface with Dual Water Intake Modes
A design with both mechanical and touch-based water intake methods for flexible operation.
Real-time monitoring of RO conductivity, UP resistivity, and water flow.
Stores water intake records, water quality data, and equipment alarms for traceability.
▶ Advanced Dual-Stage RO Filtration
Dual-stage membrane system: First-stage recovery >30%, second-stage reuse for higher efficiency.
Proprietary RO membrane with ≥99% desalination rate, anti-pollution coating, and long service life.
Terminal 0.22μm bacterial filter ensures particle count
▶ Sterile Water Storage & Optional Upgrades
Mirror-finish stainless steel sterile tank (15L capacity) with built-in UV sterilizer (microbial count<0.1CFU/ml).
Optional features:
185/254nm dual-wavelength UV for TOC reduction (≤2ppb under specific conditions).
Leak detection alarm for enhanced safety.
▶ Smart & Customizable Operation
Targeted water intake by quality: Set target resistivity (≥18.2MΩ•cm) for automatic stop when reaching the standard.
Quantitative water intake: Preset volume options + custom input for personalized usage.
Automatic RO membrane flushing and UV sterilizer cycle cleaning.
▶ Compact & Reliable Design
Split-type structure: Main unit (337×450×628mm) fits on lab benches; tank (200×360×482mm) stores in cabinets.
Disposable consumables for tool-free replacement, minimizing downtime.
High-quality pipe fittings ensure leak-free operation and long-term stability.
Technical Specifications1. Inlet Water Requirements
ParameterValue/Range
| Water Source | Potable tap water (compliant with GB 5749-2022) |
| Pressure | 0.25–0.5MPa |
| Flow Rate | >300L/H |
| Temperature | 5–35℃ (41–95℉) |
| Conductivity | | Dissolved CO₂ | | pH | 6.0–9.0 |
| Total Organic Carbon (TOC) | | Hardness (as CaCO₃) |
|
| Silica (SiO₂) | | Free Chlorine | ≤2ppm |
2. Pure Water (RO) Output
ParameterValue/Range @25℃ (77℉)
| Filtration Stage | Dual-stage RO |
| Production Capacity | 20L/H |
| Organic Removal Rate | >99% |
| Desalination Rate | ≥99% (source water pH 7.0) |
| TOC | | Silica Rejection | >99.9% |
| Conductivity | ≤5.0μs/cm |
| Pure Water Tank Capacity | 15L |
| pH | 5.7–6.2 (source water pH 7.0) |
3. Ultra-Pure Water (UP) Output
ParameterValue/Range @25℃ (77℉)
| Resistivity | ≥18.2MΩ•cm |
| Heavy Metals | | Particles (>0.22μm) | | TOC (Specific Conditions) | ≤2ppb (ng/g) |
| Microbial Count | | RNase (Optional) | | DNase (Optional) | | Endotoxin (Pyrogen, Optional) | <0.001EU/ml |
4. Flow Rate & Power
ParameterValue/Range
| Output Flow (New Filter) | ≤60L/H (pure/ultra-pure water, @25℃) |
| Power Supply | Single-phase AC 220V±10%, 50/60Hz,<200VA |
5. Installation Environment
ParameterValue/Range
| Location | Indoor use only (workbench installation) |
| Ambient Temperature | 5–40℃ (41–104℉) |
| Relative Humidity | ≤80% |
| Atmospheric Pressure | 70–106kPa |
| Noise Level | <50dB (1m distance) |
6. Dimensions
ComponentDimensions (L×W×H, mm)
| Main Unit | 337×450×628 |
| Water Tank | 200×360×482 |
| Packaging (CJ-LTM20I) | 580×720×730 |
Compliance Standards
Meets or exceeds:
CE Certification (for safety and electromagnetic compatibility)
College of American Pathologists (CAP): Class I
Chinese National Standards: GB/T 6682-2008 (Grade I & III), GB/T 33087-2016
Chinese Clinical Standards: WS/T 574-2018 (Purified Water)
Applications
Ideal for:
Molecular biology (PCR, sequencing, cell culture)
Analytical instruments (HPLC, GC-MS, ICP-MS)
Pharmaceutical reagent preparation
Clinical diagnostics and medical device testing
Package Includes
1× LTM20I Main Unit
1× 15L Stainless Steel Sterile Tank
Power Adapter (220V, grounded)
English User Manual
CE & Quality Certifications
Benefits
Rigorous Purity: Ultra-pure water with resistivity ≥18.2MΩ•cm and optional low RNase/DNase/endotoxin levels.
Smart Control: Touchscreen interface with customizable water intake and real-time monitoring.
CE Certified: Compliant with European safety and quality standards for global use.
Space-Saving: Compact design fits small labs while offering large 15L tank capacity.
>>
