Basic Info.
Certification
CE, ISO13485
Energy
Cold Sterilization
Property
Physical Sterilization
Type
Induction Electronics Sterilization Equipment
Name
50L Milk Pasteurization Machine
Cooling Way
Water Cooling
Sterilization Time
5-30min (Adjustable)
Sterilization Temperature
65-90 Degree
Transport Package
Wooden Case
Specification
500*500*1000MM
Packaging & Delivery
Package Size
60.00cm * 60.00cm * 110.00cm
Package Gross Weight
100.000kg
Product Description
Product Description

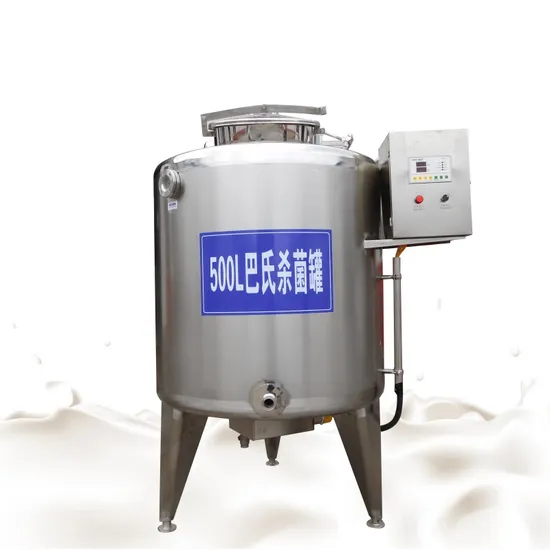

Best selling milk pasteurizer machine
The pasteurization machine are mainly composed of milk tank, mixing device, heating device, base circulating water pump, circulating water channel and refrigerating device. There is a mixing device in the milk tank, which can make the milk heated evenly. The pasteurized milk are made by the firesh milk sterilizer keeps the active ingredients in the milk to the maximu extent and ensures the fresh and original taste of the milk.
Feature of milk pasteurizer machine:
* The machine materials good quality stainless steel of SUS-304.
* Good sterilization effect, lose noise, speed can adjustable.
* Automatic temperature controller system, easy to operation.
* Have the cooling system, can cool milk and juice after pasteurization.
* The tank have three layers: milk layer, hot water pasteurization layer and keep warm layer.
* The machine with mixing system, can mix milk when pasteurization.
Product Parameters
Model 1(Economic type)
| Model | KLPM-50 | KLPM-100 | KLPM-150 |
| Size(mm) | 500*500*1000MM | 600*650*1250MM | 650*700*1000MM |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Power | 6kw | 9kw | 12kw |
| Weight | 80kg | 90kg | 100kg |
| Cooling way | water cooling |
| Sterilization time | 5-30min(adjustable) |
| Sterilization temperature | 65-90ºC |
Model 2(With water heat preservation tank type)
| Model | KLW-100 | KLW-150 | KLW-200 |
| Cpacity | 100L | 150L | 200L |
| Size(mm) | 1400*780*1530mm | 1400*780*1550mm | 1640*1050*1730mm |
| Voltage | 220V/380V/50Hz | 220V/380V/50Hz | 220V/380V/50Hz |
| Power | 6kw/9kw | 6kw/9kw | 6kw/9kw |
| Weight | 170kg | 200kg | 230kg |
| Cooling way | water cooling |
| Sterilization time | 5-30min(adjustable) |
| Sterilization temperature | 65-90ºC |
Detailed Photos
Product display
We are specialized in the production of milk production line equipment. If you have other needs, please contact me!
♦ Standard pasteurized milk process supporting equipment:
raw milk tank → pump → preheating tank → pump → homogenizing tank → pump → sterilizing tank → pump → pre-cooling/refrigeration tank → pump → filling machine
