Product Description
Product Description

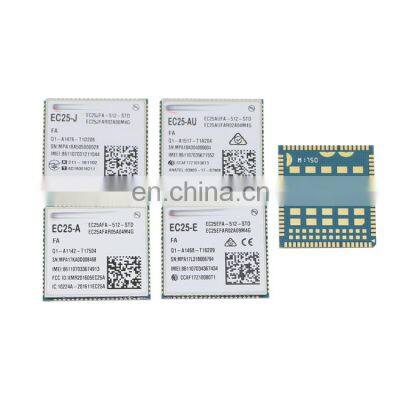

DescriptionOverviewEC25 is a series of LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink. Designed in the compact and unified form factor, EC25 is compatible with multi-mode LTE Standard EC21/EC20 R2.0/EC20 R2.1/EG25-G/EG21-G modules and UMTS/HSPA+ UC20/UC200T module, which allows for flexible migration among them in design and manufacturing.EC25 contains 13 variants: EC25-E, EC25-EU, EC25-EUX, EC25-J, EC25-A, EC25-V, EC25-AF, EC25-AFX, EC25-MX, EC25-AUT, EC25-AUTL, EC25-AU and EC25-AUX. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.https://www.hurryup.en.china.cnEC25 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance, and digital signage.www.hurryup.en.china.cnKey Benefits● LTE Cat 4 module optimized for M2M and IoT applications● Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment● Feature refinements: supports DFOTA*, eCall* and DTMF● MIMO technology meets demands for data rate and link reliability in modem wireless communication systemsEC25-ELTE-FDD: B1/B3/B5/B7/B8/B20LTE-TDD: B38/B40/B41WCDMA: B1/B5/B8GSM/EDGE: B3/B8Embedded GNSS: OptionalWi-Fi/BT Interface: YRegion: EMEA/South Korea/Thailand/IndiaCarrier:Vodafone/ Deutsche Telekom/ SKT/ Telefónica / KT*/ LGU+* Regulatory: GCF/ CE/ KC/ NCC/ RCM/ FAC/ NBTC/ ICASAOthers: WHQLEC25-EULTE-FDD: B1/B3/B5/B7/B8/B20LTE-TDD: B38/B40/B41WCDMA: B1/B8GSM/EDGE: GSM/EDGEEmbedded GNSS: OptionalWi-Fi/BT Interface: YRegion: EMEA/ThailandCarrier: Deutsche Telekom/ British Telecom Regulatory: GCF/ CE/ RCM/ NCC Others: WHQLEC25-EUXLTE-FDD: B1/B3/B7/B8/B20/B28ALTE-TDD: B38/B40/B41WCDMA: B1/B8GSM/EDGE: B3/B8Embedded GNSS: OptionalWi-Fi/BT Interface: NRegion: EMEA/ThailandRegulatory:GCF/ CE/ NCC/ RCMOthers:WHQLEC25-JLTE-FDD: B1/B3/B8/B18/B19/B26LTE-TDD: B41WCDMA: B1/B6/B8/B19GSM/EDGE: /Embedded GNSS: OptionalWi-Fi/BT Interface: YRegion: JapanCarrier:NTT DOCOMO/ SoftBank/ KDDIRegulatory:JATE/ TELECOthers:WHQLEC25-ALTE-FDD: B1/B3/B8/B18/B19/B26LTE-TDD: /WCDMA: B2/B4/B5GSM/EDGE: /Embedded GNSS: OptionalWi-Fi/BT Interface: YRegion: North AmericaCarrier:AT&T/T-Mobile/ Rogers/ TelusRegulatory:FCC/ IC/ PTCRBOthers:WHQLEC25-VLTE-FDD: B4/B13LTE-TDD: /WCDMA: /GSM/EDGE: /Embedded GNSS: OptionalWi-Fi/BT Interface: YRegion: VerizonCarrier:VerizonRegulatory:GCF/ FCCOthers:WHQLwww.hurryup.en.china.cnEC25-AFLTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71LTE-TDD: /WCDMA: B2/B4/B5GSM/EDGE: /Embedded GNSS: OptionalWi-Fi/BT Interface: YRegion: North America FirstNetCarrier:Verizon/ AT&T/ T-Mobile/ Rogers/ U.S. Cellular/ Telus/ Bell*Regulatory:GCF/ FCC/ IC/ PTCRBOthers:WHQLEC25-AFXLTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71LTE-TDD: /WCDMA: B2/B4/B5GSM/EDGE: /Embedded GNSS: OptionalWi-Fi/BT Interface: NRegion: North America FirstNetCarrier:Verizon*/ AT&T*/T-Mobile*/U.S. Cellular*Regulatory:GCF/ FCC/ PTCRB/ ICOthers:WHQLEC25-MX①LTE-FDD: B2/B4/B5/ B7/B28/B66LTE-TDD: /WCDMA: B2/B4/B5GSM/EDGE: /Embedded GNSS: NWi-Fi/BT Interface: NRegion: MexicoRegulatory:FCC/ PTCRB/ IFETELOthers:WHQLEC25-AUTLTE-FDD: B1/B3/B5/ B7/B28LTE-TDD: /WCDMA: B1/B5GSM/EDGE: /Embedded GNSS: OptionalWi-Fi/BT Interface: YRegion: AustraliaRegulatory:RCMOthers:WHQLEC25-AUTLLTE-FDD: B3/B7/B28LTE-TDD: /WCDMA: /GSM/EDGE: /Embedded GNSS: /Wi-Fi/BT Interface: YRegion: AustraliaRegulatory:RCMOthers:WHQLEC25-AULTE-FDD: B1/B2①/B3/B4/B5/ B7/B8/B28LTE-TDD: B40WCDMA: B1/B2/B5/B8GSM/EDGE: Quad-bandEmbedded GNSS: OptionalWi-Fi/BT Interface: YRegion: Latin America/Australia/New ZealandCarrier:Telstra*Regulatory:GCF/ FCC/ Anatel/ NCC/ RCMOthers:WHQLEC25-AUXLTE-FDD: B1/B2①/B3/B4/B5/B7/B8/B28LTE-TDD: B40WCDMA: B1/B2/B5/B8/B4GSM/EDGE: Quad-bandEmbedded GNSS: OptionalWi-Fi/BT Interface: YRegion: Latin America/Australia/New ZealandRegulatory:CE/ NCC/ Anatel/ RCMOthers:WHQLNotes:① LTE-FDD B2 of EC25-AU and EC25-AUX does not support Rx-diversity.* Under developmentWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
