Famous Servo Motor Approved High Quality PE/PP Bottle Blow Molding Machine 500ml

Product Description

Company Profile
Product Description

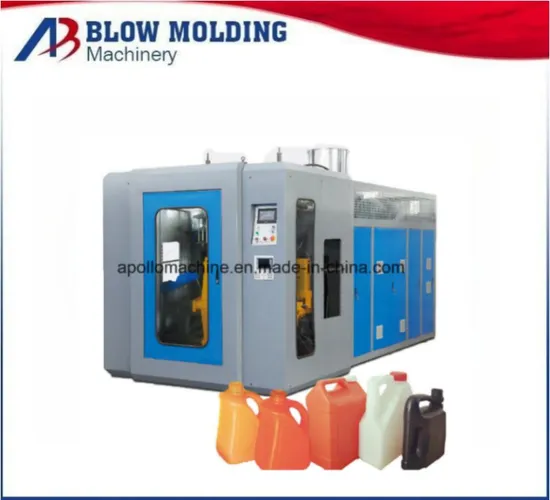

Automatic Blow Molding Machine (ABLB75)
ABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles,detergent bottles , plastic toys and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 8L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available,can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
Product Parameters
The main components of the machine. ( ABLB75 )

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO

Technical Parameters: ( ABLB75 )

Max. Product volume	8 liters
Output capacity	120pcs/h
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	6 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	188-600mm
Mold stroke	400 X 450mm
Max.die diameter	180mm
Blowing pressure	0.6 mpa
Air Volume	0.7 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60 L/MIN
Size of Machine	3.6x1.8x2.8m
Weight of machine	6.3 ton

Certifications
After Sales Service
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.

---
