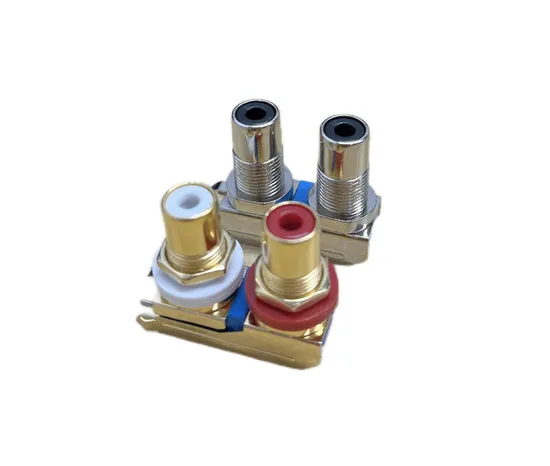

RCA02 Dual Unit RCA Connector Audio Jacks Sockets RCA Video

Product Description

1.Electrical characteristics:

Rating:	30V/DC.1.0A
Contact resistance:	30mΩ Max
Insulation resistance:	100mΩ Min
Dielectric withtanding voltage:	500V AC RMS After 1 Minute

2.Mechanical characteristics:

Insertion force:	30N Max
Withdrawal force:	8N Min
Withdraw force for center contact:	5N Min (Use a 0D=3.2±0.05mm,Length=14±0.20mm gauge plug)
	The terminal shall be capable of with standing a force of 30N applied in pulled direction for 5 seconds.Without loosing and breakdown,but deformation of terminal is accepted)

3.Life test:15000 Cycles Min4.Environmental: 4-1.Temperature range:-40ºC to +70ºC 4-2.Salt spray:24H5.Packing: 5-1.Reel packing:Tray packing.6.Part must comply Rohs specification.

---
