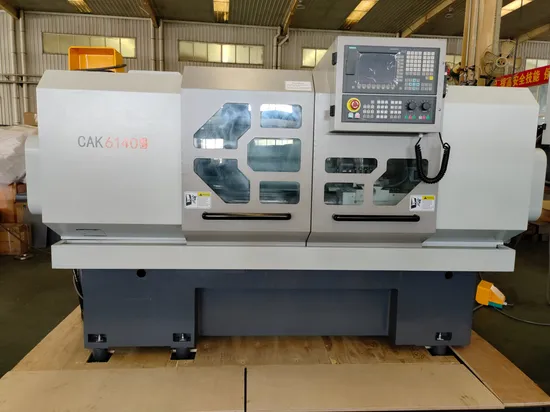

Flat Bed CNC Lathe Cak6140c

Product Description

Main feature
The guideways are hardened and precision ground·Infinitely variable speed change for spindle·The system is high in rigidity and accuracy·The machine can smoothly run with low noise·Design of electromechanical integration, easy operation and maintenance
It can turn taper surface, cylindrical surface, arc surface, internal hole, slots, threads, etc., and is used especially for mass production of disc parts and short shaft in the lines of automobile and motorcycle.
Standard configuration:
GSK CNC system, lighting & cooling systems, spindle &
bedway lubrication system, electric toolpost, half enclosed
protective cover.
Special configuration:
CNC systems of FANUX, SIEMENS, HUAZHONG & KND
power chuck, gang tool holder, steady rest, follow rest,
pad iron, communication interface.

Parameter
SPECIFICATIONS	CAK6140C*1100
Swing diameter over bed	ф400mm
Swing diameter over table	ф200mm
Distance between centers	1100mm
Bedway width	320mm
Spindle taper	MT6
Spindle nose	A2-6
Spindle speed	50~3000r/min
Spindle bore	ф66
Chuck size	200mm
Longitudinal stroke	1000mm
Cross stroke	300mm
Turning tool size	20×20mm
Tailstock stroke	140mm
Tailstock taper	MT4
Rapid feed	X:6m/min Z:8m/min
Min. setting unit	0.001mm
Repositioning accuracy	X:0.012mm Z:0.016mm
Circle/cylinder	0.005,0.03/300mm
Torque of feed motor	X:6N.m Z:7.5N.m
Power of motor	5.5kW
CNC system	SIEMENS808D
N.W/G.W	1730/1830kg
Overall dimensions	2250×1400×1730mm
Package	Veneex box

---
