Mini Fiber Laser Marking Machine 20W Metal Laser Engraving Equipment

US$10,000.00-700,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HM005
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Laser Wavelength
Fiber Laser
Laser Classification
Fiber Laser
Type
YAG Laser Marking Machine
Transport Package
Air Freight
Trademark
Himalaya
Origin
China
Production Capacity
100

Product Description

Product Description
Model NO. HM005 Condition New
Certification ISO Warranty 12 Months
Automatic Grade Automatic Installation Vertical
Driven Type Electric Transport Package Customized or Wooden Box Packaging
Trademark Himalaya Production Capacity 1

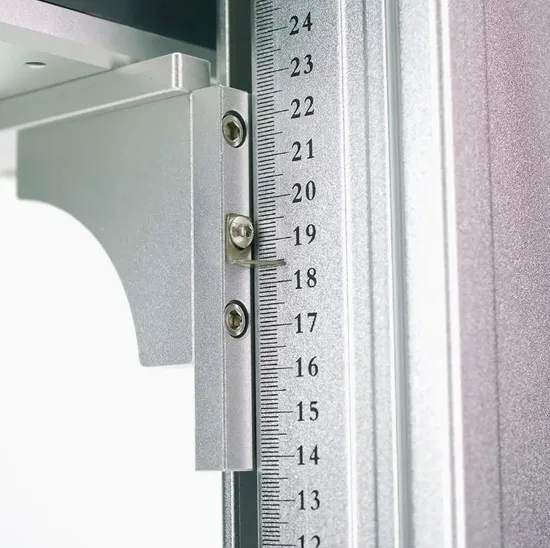

Detailed Photos
Brief Description
1. Various metal materials, part of non-metal materials. 2. The fiber optic laser oscillator marker has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy.
Features:
1.Small and compact size, use common air-cooling system. 2.Fiber output, can apply flexibly, and easy to make 3D processing system. 3.Install backward reflecting isolator, which uses the particularity of wavelength and direction of laser, and the special structure inside the backward reflecting isolator, to block the laser reflected by work piece, in order to avoid the laser enter the laser oscillator again to damage the laser oscillator.

Specifications
Model G20
Laser output power 20W
Focus lens F160 (standard) F254(optional)
Lens type F160 (standard) F254(optional)
Marking area 3.9''×3.9'' 6.3''×6.3''
Marking speed 300 characters/sec, height=0.039'' 300 characters/sec, height=0.039''
Min. character size 0.01'' 0.02''
Min. line width 50μm 90μm
Wave length 1064nm
Beam quality M2 <1.6
Power stability(8h) <±1% rms
Pulse repetition frequency 1.6kHz-1000kHz
Marking depth ≤0.016''
Marking speed ≤22.97'/s
Repetition accuracy ±0.0001''
Power consumption 500W
Indication light Red light wavelength=650nm
Cooling mode Air cooling
Running temperature 15ºC-35ºC
Electrical source requirement 110-220V/ 50Hz (60Hz) / 4A
Dimensions (L*W*H) 1.8'×2.6'×2.5'
Weight 121 KG

Exhibition & Customers
Field Application

FAQ
Q1:How to choose a suitable machine?
A1:You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2:What is the warranty period for the equipment?
A2:One year warranty and 24 hours online professional technical support. Q3:How to choose a suitable machine? A3:You can tell us the request of machine function. We can recommend the most suitable machine according to our experience.
