Advanced Automatic Cleaning of Drum Magnetic Separator for Food and Feed Industry

Product Description

Product Description

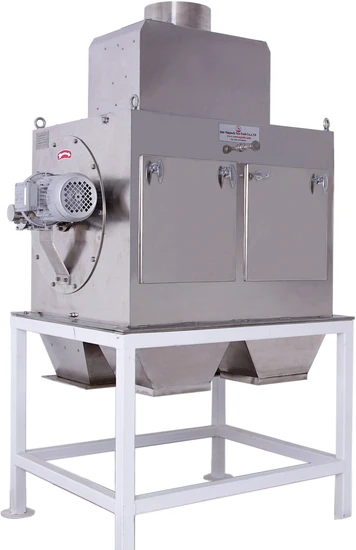

Drum magnetic separator is ideal for the continuous removal of ferrous contamination from dry free-flow bulk materials. The magnetic drum designed to be half-magnets with nonmagnetic stainless steel jacket which divided the housing into magnetic zone and non-magnetic zone.
The ferrous metal stick to the drum due to the magnetic field when gravity materials flow go through the magnetic zone, which passed out of the magnetic field and discharged along with rotating jacket.

Detailed Photos
Product Parameters
1) Magnetic Performance:3'500GS/4'000GS/5'000GS
2) Material of housing and other parts: 304 stainless steel/316 stainless steel
3) Surface finish: Sand blasting
4) Inside magnets: Strong permenent rare earth magnets
5) Working Temp.<: 80ºC, 100ºC, 120ºC, 150ºC,

Model No.	Dimension (mm)					Capacity
	A	B	C	D	E	m³/h	t/h (Volume-weight r=0.75)
SCXG-22/46	460	450	500	900	150	25	18
SCXG-30/46	460	620	550	900	200	50	37
SCXG-30/76	760	620	600	1000	200	85	63
SCXG-45/81	810	920	950	1600	300	141	105
SCXG-45/100	1000	920	950	1600	320	200	150
SCXG-45/135	1350	920	950	1600	350	260	195
SCXG-45/175	1750	920	950	1600	2×350x350	330	247
SCXG-45/225	2250	920	950	1500	300×800	400	300

Certifications
Packaging & Shipping
SunMag provide different packing methods to protect the magnetic separator in good condition to suit for Air, Internationa express, Sea shiping methods.
Goods will be packed into carton, wooden pallet, or wooden case.
Or if the customer has specific requirements of packing, we will arrange the packing according to this.
Company Profile
Sun Magnetic Sys-Tech Co., Ltd founded in 2001 by the founder Mr. Sun Jianguo in Beijing, China, as a professional and well equipped manufacturer of permanent magnetic system, we have more than 20 years of experience in R&D, design and manufacture.
SunMag foucus on design an manufacture of magnetic separators to remove ferrous contaminants from dry solids(powder & granule), liquids and slurries in the processing industry, and provides customers with professional solution, top quality and great service.
With quality assurance of ISO9001 certification, our products are mainly exported to Southeast Asia, Europe, North and South America and Australia, and widely used in food industry, pharmaceuticals Top quality and continuous improvement are perpetual commitment to customers in the entire process of service.
Exhibitions Attended:
Domestic market:Lithium battery exhibition, Packing exhibition, Food processing exhibition, Plastic exhibition Pharmaceuticals exhibition, and so on.
Abroad market: GEAPS(USA), IAOM(USA & Southeast Asia),IPPE(USA), VICTAM(Europe & Thiland), IDMA(Türkiye), Eurotier(Europe),
For more specific information of our all kinds magnetic separator, you could visit our website.
Our Advantages
1) Strong rare earth magnets
2) Food grade
3) Automatic continuous self-clean
4) With inspection window, wear-resistance wearing parts
5) With access door for drum removal
6) High capacity
7) Available brands gear reduction drive motor
8) Special voltage available
9) Explosion proof motor optional
10) Mild steel housing optional
11) Customized flange available

FAQ
Q1:How about the cleaning effect of SunMag Magnetic Separators?
A: ABOVE 99%.
Q2: How about your delivery date?
A: 15-40 days.
Q3: Do you test all your magnetic separtor before delivery?
A: Yes, we have 100% test before delivery
Q4: What is the usual payment method?
A: T/T, L/C, VISA, or other payment .
Q5: Could the magnetic separator be customized?
A: All the magnetic separator could be customized according to the customer's specific requirements.
Q6: Do you have a factory?
A: We are a manufacturer, all the magnetic separators are designed and produced by ourselves, and we have our own technical R&D team.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
