Stone Machinery Double Blade Quarry Stone Block Cutting Machine

US$32,000.00-38,000.00 1 Set (MOQ)

Basic Info.

Model NO.
BTC-2500
Application
Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
API, CCC, SONCAP, GOST, ISO, CE
Max Blade Diameter
Φ2500mm
Max Processing Length
3000/3500mm
Max Processing Width
2500mm
Max Lifting Stroke
1350mm
Water Consumption
15m3/H
Main Motor
45/55kw
Gross Motor
56/66kw
Outline Dimension
8000*48800*3700mm
Gross Weight
14500kg
Blade
Multi-Blades
Transport Package
Load in a 40 Feet Container
Specification
8000*48800*3700mm
Trademark
Xianda
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Product Description

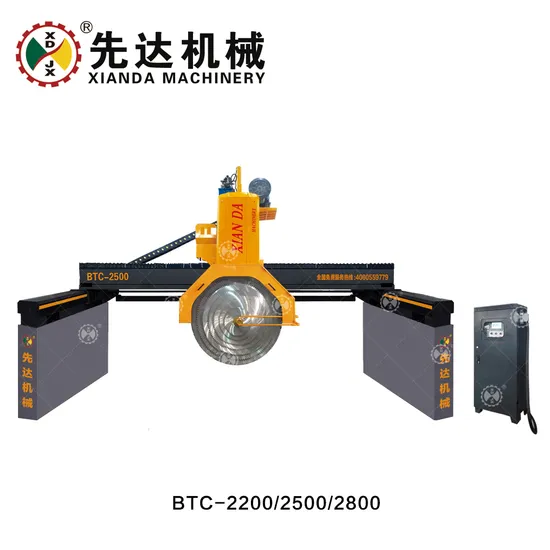

Product Description BTC-2200/2500/2800 Multi-blades Granite Marble Bridge Block Cutting Machine uses inverter to control left-right feeding, speed adjustable. It uses hydraulic lifting system, combined with four guide poles, also Guide Sleeve with multi-functions layer seals, like waterproof, dustproof, anti-spill. Forward-backward slicing uses high-precision screw nut driving, automatic slicing. Main spare parts adopt imported good-quality materials, the block can be placed on the ground directly. Thus the whole machine is featured with high cutting efficiency, high slicing precision, high flatness of plate after cutting, high stability, easy-operating etc. It is a ideal equipment for your fabricating plant.
Note: 360°rotating worktable can be selected if customer requires.
Technical Parameter
Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max blade diameter mm 2200 2500 2800
Max processing length mm 3600 3300 3200
Max processing width mm 2200 2200 2800
Max lifting stroke mm 1350 1350 1350
Water consumption m3/h 15 15 15
Main motor kw 45/55 45/55 55
Gross motor kw 56/66 56/66 66
Outline dimension mm 8000*4800*3700 8000*4800*3700 8000*4800*3700
Gross weight kg 14000 14500 15000

Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Our Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
