US$3,000.00-50,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
SJ65/38, SJ75/38, SJ90/38, SJ120/38, SJ150/38,
Computerized
Computerized
Certification
CE, ISO9001:2008, TUV
Condition
New, Under The Order
After-sales Service
Send Engineers Install and Test Machine
Produced PE Pipes Applications
Water Supply, Sewer, Sea Marine Pipe, Gas Supply
PE Pipe Structure
Single Layer, Double Layer, Three Layers
Production Line Control
Siemens PLC Touching Screen
Electric Parts
ABB, Rkc, Omron, Simense
Produced HDPE Pipe Diameter
16, 315, 400, 500, 630, 710, 800, 1200, 1600
Pipe Molding Machine
Spiral Shunt Extrusion Mould or Coating Mould
Delivery Conditions
Fob CIF CIP
Processing Period
40-60 Days
Machine Brand
Qingdao Sincere Machinery
PE Pipe Production Speed
0.1-30m/Min
Plastic Pipe Haul-off Machine
2-Claws, 4-Claws, 6-Claws, 8-Claws, 10-Claws, 12
Plastic Pipe Cutting Machine
Chipless Cutting Machine
Transport Package
Stretch Film and Wooden Pallet, Wooden Packing
Specification
Pipes Diameters 16,63,110,315,400,630,710,800,1200
Trademark
Sincere Machinery
Production Capacity
50 Sets\Year
Product Description

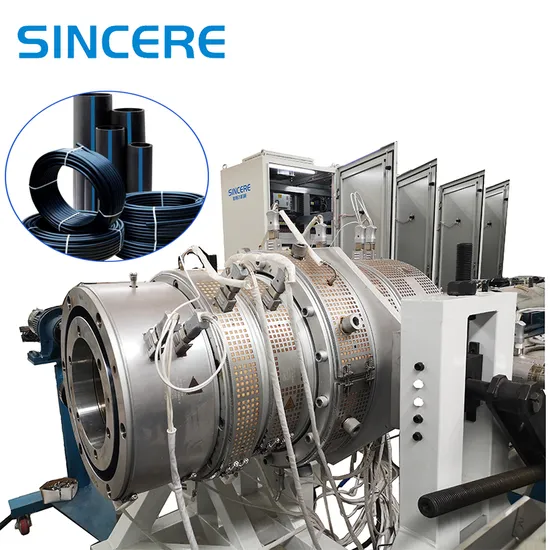

PE HDPE Pipe Extrusion Line Pipes Manufacturing Plant For Water and Gas Supply.
HDPE Gas and Water Pressure Pipe Production Equipment Extruding Line (20-110,315,400,560,630,800,1200,1600mm).
1. HDPE/MDPE fuel gas/water supply pipe features:
This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.
2. Production line features:
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.
Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.
Extrusion capacity from 40kg/h to 1500kg/h.
Extrusion die-head, extrusion die mould, vacuum calibrators.
Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.
Vacuum calibration water tanks, and spray water cooling tank, made of stainless steel ensures precise calibration and fast cooling.
Adopts multi claws haul-off unit: Chipless cutting machine:
speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors
Haulling speed: 0-30m/min
3. Technical parameters:
| Model | Pipe Diameters(mm) | Supporting extruder
(33:1 or 38:1) | Extrusion capacity(kg\h) | Total Installed Power(kw) |
| SG-63 | 16-63 | SJ65\33 SJ25\25 | 120-180 | 110 |
| SG-110 | 16-110 | SJ65\33 SJ25\25 | 150-200 | 130 |
| SG-160 | 50-160 | SJ75\33 SJ25\25 | 150-220 | 150 |
| SG-250 | 75-250 | SJ75\33 SJ25\25 | 280-350 | 280 |
| SG-315 | 110-315 | SJ90\33 SJ25\25 | 250-350 | 350 |
| SG-450 | 160-450 | SJ90\33 SJ25\25 | 350-450 | 400 |
| SG-630 | 315-630 | SJ120\33 SJ25\25 | 550-850 | 550 |
| SG-800 | 450-800 | SJ150\33 SJ25\25 | 800-1300 | 750 |
| SG-1000 | 600-1000 | SJ150\33 SJ25\25 | 800-1300 | 750 |
| SG-1200 | 800-1200 | SJ120\33*2 SJ25\25 | 950-1600 | 950 |
| SG-1600 | 1000-1600 | SJ150\33*2 SJ25\25 | 1500-2500 | 1300 |
>>
