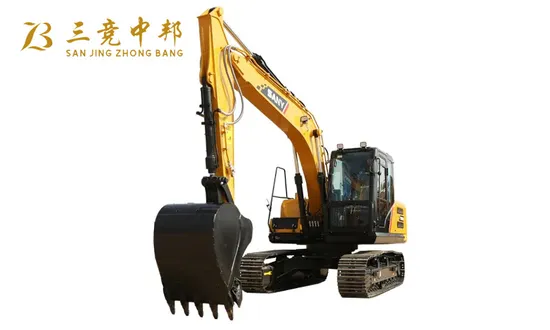

Latest S-a-N-Y Mini Excavator I*Suzu Engine Sy155h with Best Configuration

Product Description

Latest S-A-N-Y Mini Excavator I*suzu Engine SY155H with Best Configuration Product Description
Innovative Electro-hydraulic Control System
· With a dual-pump, dual-circuit constant power control system, the engine can provide a strong operating force. Optimized operation performance of the engine reduces power loss.
Multi-purpose of One Machine
· Quick-change pipeline +2 sets of auxiliary pipelines are standard, and various attachments can be switched at will.
Flexible Operation
· Ultra-small turning radius, full bucket of materials can turn 360 within 3.7m width, which is more suitable for narrow space operations such as one-way streets and municipal maintenance.
Automatic Air Conditioner
· The standard air conditioner keeps in-cab air fresh. The quick temperature control ensures a comfortable temperature in cab all the year round. Product Parameters

Specification
Machine weight	14100kg
Bucket capacity	0.65m³
Engine
Model	I*suzu 4JJ1
Rated power	86/2200 kW/rpm
Maximum torque	375/1800 N·m/rpm
Displacement	2.999L
Performance
Climbing ability	70%(35%)
Rotation speed	12 rpm
Ground specific pressure	43 kPa
Bucket digging force	103 kN
Stick digging force	67 kN
Walking speed	5.5/3.5 km/h
Walking part
Standard tracks	500 mm
Carrier rollers on each side	2
Number of track shoes	45
Support rollers on each side	7
Oil and coolant capacity
Final drives	2x2.6 L
Fuel tanks	280 L
Hydraulic tanks	200 L
Engine oil	15 L
radiator	30 L
