Honda Gx160 Type Walk Behind Vibrating Compactor Gyp-15

Product Description

Plate compactor,there are internal combustion and electric vibrating plate ram.

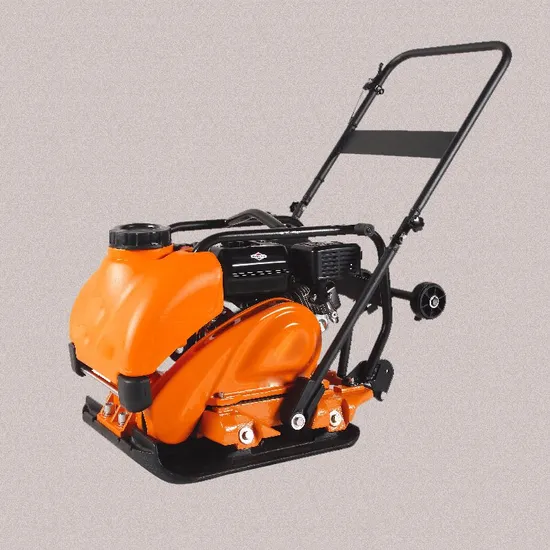

Honda GX160 Type Walk Behind Vibrating Compactor GYP-15
Features and Advantage:
1.Ductile iron base plate provides better durability
2.Open plate provides self cleaning
3.Radius base plate for easy access to corners
4.Centrally located lifting bar allows easy transportation
5.Sealed belt cover to prevent sand and soil in
6.Heavy-duty shock mounts reduce vibration to the upper engine & handle
7.Transport wheel for easy transportation around sites
8.Water tank for asphalt use
9.Optional polyurethane pad for paving
Specification

Model	GYP-15-1	GYP-15-2	GYP-15-3	GYP-15-4
Engine Type	Chinese Diesel KM170F	Chinese Petrol Engine	Robin EX17	Honda GX160
Power Kw(hp)	3.1(4.2)	4.8(6.5)	4.2(5.7)	4.0(5.5)
Weight Kg(lbs)	107(374)	97(212)	97(212)	97(212)
Frequency RPM	5500
Centrifugal Force KN	13
Travel speed cm/s(ft/min)	40(131)
Efficiency /hr(ft²/hr)	660(7100)
Plate size cm(in)	53*50(21*20)
Water tank capacity L	12

Application Scope
Plate compactor series are made of high quality steel,artificial design,facility operation,is widely applied to municipal conservation,road construction,building construction,flooring treatment, strengthen cohesive force between particles and less friction materials.
Such as river sand,soil,gravel,asphalt surface of the whole compacting.
Ditches,concrete perimeter sidewalk all kinds of backfill compaction
Reservoir,dam slope surface solidify.
MACHINERY OPERATION PROCESSING.
ASSEMBLING
PACKAGE
TRANSPORTATION
PERFORMANCE
