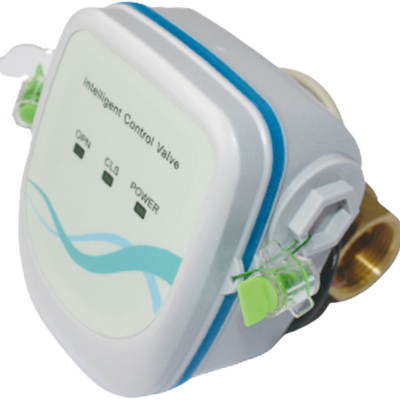

Product Details
Product Description
Product Description
Features
1.Wireless communication methods (NB-IoT/LoRa/Cat1) or wired communication (RS485/M-Bus) are available for selection.
2.It supports multiple valve position detection methods such as magnetic detection method, potentiometer, and time method, enabling precise control of the valve opening ratio.
3.The valve opening ratio can be remotely regulated, valve parameters can be set, and valve functions (regular valve opening and closing cycle, vibration alarm, temperature measurement, etc.) can be configured.
4.The function of measuring the inlet and return water temperature can be optionally equipped, and an alarm prompt will be given when a sudden temperature change occurs.
5.It has the function of regularly opening and closing the valve to prevent the valve from rusting and getting stuck due to long-term inactivity.
6.To prevent the valve from being maliciously damaged, an anti-tampering alarm function can also be optionally equipped.
7.The regulating valve with wireless communication methods has an automatic adjustment function based on temperature.
8.It supports remote online upgrade, continuously meets new requirements and relieves users of their worries.
Technical Parameter
| Performance | Parameters |
| Operating Voltage | DC 3.6V (Disposable Lithium Battery) / DC 12V - 24V |
| Nominal Diameter | DN15-DN150 |
| Maximum admissible Pressure | 1.6MPa |
| Display Method | LED/LCD |
| Communication Interface | NB-IoT/LoRa/RS485/M-Bus/Cat1 (Optional) |
| Environmental Class | Class A |
| Temperature Measuring Range | 2℃～95℃ |
| Valve Opening Ratio | 1%～100% |
| Installation Position | Inlet Water, Return Water |
| Protection Class | IP68 |
Outline Dimension
| Nominal Diameter | Length L (mm) | Width W (mm) | Height H (mm) | Pipe Connection Thread |
| DN15 | 100 | 91 | 99 | G 1/2B |
| DN20 | 100 | 91 | 107.5 | G 3/4B |
| DN25 | 100 | 91 | 116 | G 1B |
| DN32 | 100 | 91 | 123 | G1 1/4B |
>>
