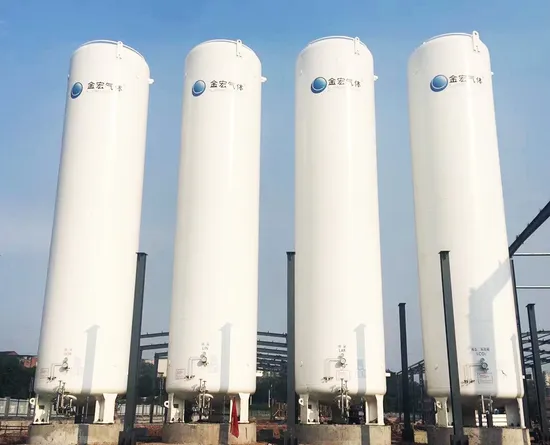

New 5m3-350m3 Vertical Cryogenic Liquid Nitrogen / Oxygen / Argon/CO2 /Nature Gas Lngtank with Vaporizer for Gas Company

Product Description

Product Description
VTseries tanks, manufactured to GB150 and GB18442 Pressure Vessel codes, available in liquid nitrogen, oxygen, argon or natural gas service, are offered in a wide range of sizes for applications requiring Maximum Allowable Working Pressure of 116, 232 psig(8, 16 bar) as standard.
Qiulin VT series tanks, vacuumed by the advanced tech, have an excellent insulation performance,low maintenance cost and three year vacuum warranty. Easy operation, reliable system, convenient installation.
Except for GB150 VT tanks, Qiulin also design and manufacture tanks with ASME Pressure Vessel codes to meet client's various demands. And the maximum storage is up to350 cube meters. Qiulin also provides vaporizers, pressure control manifolds, vacuum insulated pipelines and other components to build a perfect solution.
Product Parameters
Specifications:

Modle	Gross Capaclty	Net Capacity	NAWP	Outer Diameter	Height	Fmpty Weight	NER(N2)	Flow Capacity
	:m³	:m³	:MPa	:mm	:mm	:kg	:%/day	:m/H
VT6/0.8-GB	5.41	5.14	0.8	1816	5200	4740	0.65	200
VT6/1.6-GB	5.41	5.14	1.6	1816	5200	5300	0.65	200
VT11/0.8-GB	11.14	10.58	0.8	2216	6400	6840	0.55	450
VT11/1.6-GB	11.14	10.58	1.6	2216	6400	8150	0.55	450
VT16/0.8-GB	15.96	15.16	0.8	2216	8400	8730	0.53	450
VT16/1.6-GB	15.96	15.16	1.6	2216	8400	10530	0.53	450
VT21/0.8-GB	20.77	19.73	0.8	2216	10400	10720	0.5	450
VT21/1.6-GB	20.77	19.73	1.6	2216	10400	13000	0.5	450
VT31/0.8-GB	31.12	29.56	0.8	2920	10730	25720	0.4	1000
VT31/1.6-GB	31.12	29.56	1.6	2920	10730	19100	0.4	1000
VT50/0.8-GB	49.22	46.76	0.8	2924	12830	24890	0.35	1000
VT50/1.6-GB	49.22	46.76	1.6	2924	12830	30220	0.35	1000
VT59/0.8-GB	58.27	55.36	0.8	2924	14820	28430	0.32	1000
VT59/1.6-GB	58.27	55.36	1.6	2924	14820	34720	0.32	1000

Company Profile
Jiangsu Qiulin Special energy equipment joint stock Co.,Ltd founded in 2010, and mainly engaged in all kinds of non-standard vessels with or without pressure, cryogenic storage tank, coal water slurry complete equipment, steel structure etc.
Qiulin owns advanced design capabilities,is equipped with modern manufacturing facilities,and a full range of in-house test equipment. Over the years, we adhere to the "customer-oriented" business philosophy to provide our customers with all kinds of equipment and have the competitive edge in quality, delivery and price. Qiulin has diversified manufacturing capabilities, mainly focused on the following two areas:
I. Pressure equipment
We design individually to customer requirements, and manufacture pressure vessel, cryogenic storage tanks (Liquefied natural gas, liquefied industrial gases, gas production Skid ) & reactors & heat exchanger, columns., etc. in accordance with the following standards and codes:
· China Code GB150 and GB151 for A1, A2 and A3 Pressure Vessel design and manufacturing license;
Class B3 Special cylinder manufacturing license;
GC2 class pressure piping installation license, tank container CCS
· ASME Boiler and Pressure Vessel Code, Section VIII, Div.1 - (U Stamp, NB Stamp)
· Pressure Equipment Directive 2014/68/EU (PED) for the European market PED
· Cryogenic storage apply to the North American market DOT/CNR
· In addition, we are applying for KGS certificate for Korean market
II. Other custom products
· Metallurgy, mineral equipment fabrication, including coal water slurry complete equipment, mill, furnace, casting machine, disk machine, etc.
· Paper machine and marine equipment
· Process modules and skid equipment fabrication, including detailed design, material purchasing, fabrication, assembly, painting, insulation, electrical and instrumentation, etc.
· Custom prefabricated steel structures
Qiulin has been partner of many domestic and overseas famous company like CNPC, CNOOC, SINOPECC, Air Liquid, Air products, Messer, Linder Yingde gases, Fuel Tech, ABB, MO,Andritz, Reel, Morimatsu etc.
Fabrication Site
Main Equipment
Certifications
Packaging & Shipping
Project Case
Our Client
Trade Show
FAQ
Q1: Are you manufacturer?
A1: Yes, we're an experienced manufacturer.

Q2: Can we use our LOGO and design?
A2: Of course, we offer OEM/ODM service.

Q3: What's the sample cost?
A3: The sample and shipping charges will be required.
Once the mass production order is placed, the sample charges will be deducted.

Q4:Do you inspect the finished products?
A4: Yes, each step during production will be inspected by our Qc team.

Q5: What's the payment term?
A5: Normally TT,LC, detail to be discussed

Q6:Any warranty for the goods?
Q6:Normally 1 year warranty after delivery except artificial damage. For Vacuum is 3 years.
