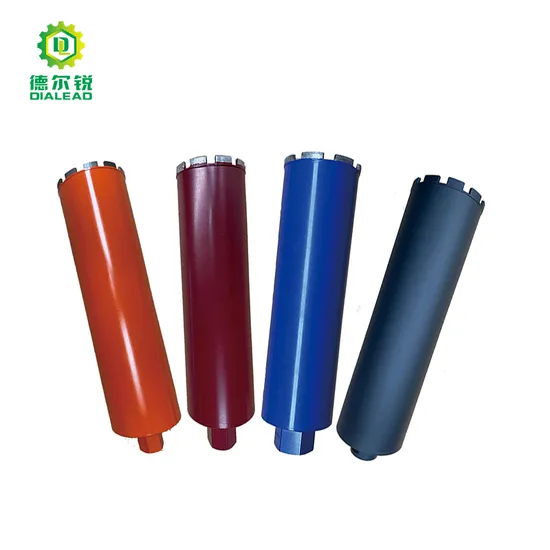

Dialead Wet Reinforced Concrete Diamond Core Drill Bit

Product Description

Product Description
Diamond concrete core drill bit is made up of two parts:diamond working area and the welding layer which contains no diamond. Dialead has over 10 different types of concrete core drill segments to suit different concrete demand. for example, it is totally different formulas for normal concrete and reinforce concrete. Different component and percentage inside concrete affects the drilling effect, for example, steel iron bars and pebble stone requires different kinds of concrete core drill bits.

The characteristics of a single grain size of diamond and wide horizontal spacing can improve the sharpness of core bit,In addition, the diamond longitudinal arrangement is interlaced, which can ensure the continuous diamond exposure and stable drilling. Besides,the welding layer contains no diamond, which can guarantee the welding strength and drilling safety of the core bits,etc.

Based on over 20 years' experience, Some regions demand fast concrete diamond core bits while some demand long life one, for example, European, Australia and American market demands sharp and fast ones.

The drilling length of steel core barrel is 300mm, 350 or 450mm, custom sized diamond core bit segments and core drill barrels are also available. We support sample test, customers buy concrete core drill bit will get discount for the trial order

Product Parameters

Diameter (mm)	Segment Size(mm)	Working Length(mm)	Total Length (mm)	Segment Quantity
16	3*10	400	475	1
18	3*10	400	475	1
20	3*10	400	475	1
24	15*3*10	400	475	3
25	15*3*10	400	475	3
28	15*3*10	400	475	3
32	16*3*10	400	475	4
36	16*3*10	400	475	4
38	16*3*10	400	475	5
40	16*3*10	400	475	5
42	16*3*10	400	475	5
47	24*3.5*10	400	475	4
51	24*3.5*10	400	475	5
63	24*3.5*10	400	475	6
68	24*3.5*10	400	475	6
78	24*3.5*10	400	475	7
82	24*3.5*10	400	475	7
92	24*3.5*10	400	475	8
112	24*4*10	400	475	9
122	24*4*10	400	475	10
127	24*4*10	400	475	11
132	24*4*10	400	475	11
142	24*4*10	400	475	12
152	24*4.5*10	400	475	12
162	24*4.5*10	400	475	12
172	24*4.5*10	400	475	12
182	24*4.5*10	400	475	13
202	24*4.5*10	400	475	15
212	24*4.5*10	400	475	16
225	24*4.5*10	400	475	16
250	24*4.5*10	400	475	16
300	24*4.5*10	400	475	17
350	24*5*10	400	475	20

Application
Packaging & Shipping

Company Profile Founded in 1996, DIALEAD ENTERPRISE is a high-tech enterprise for stone and concrete processing with its own import and export right that integrated R&D,manufacture and sales into one. With three factories focusing on stone tools, stone machinery and concrete tools respectively. Dialead can surely meet your needs of stone and concrete processing without fail.
Attributed to its great technical advantages, Dialead concrete tools has managed to develop a broad range of products such as concrete drill segments, concrete wet drill bit, dry drill bit, continuous drill bit, hand-held drilling machine and frame-mounted drilling machine, wall saw blade, wall saw, electricity wire saw etc. In ever-lasting pursuit of best quality, Dialead is well received by world-wide customers from Russia,Iran,Turkey,Pakistan,SaudiArabia,Ukraine,USA,Canada,Brazil,Kazakhstan etc
In unremitting endeavor of best quality, best service and best efficiency, Dialead will surely present you one-stop solution for your concrete processing. Dialead sincerely welcome clients at home and abroad to pay a visit to start a long-running win-win business.
