Sintered Hard Strong Ferrite Magnet

Product Description

General Introduction Product Description 1, We specialize in manufacturing high performance sintered ferrite magnets in China...
2, The quality and characteristics of our sintered ferrite magnet products have been fit for the standard of Y30BH, Y33, Y33H, Y35, Y36, Y38, Y40, which are equal to C7, C8A, C8B, C9~C12 in MMPA, the American standard...
3, We are good at manufacturing super-large, super-thin and big radian segment permanent ferrite magnet, with good magnetic property and quality which equal to international advanced counterparts's, its products are marketable and popular. Welcome customized orders.
Features of Ferrite Magnet:
Manufactured from oxide materials using powder metallurgical process. Ferrite magnet is most widely used because of its low cost, high-energy, good electric insulation and excellent resistance to demagnetization. The most common type of ferrite magnets are anisotropic strontium, anisotropic barium and isotropic barium magnet...
We are good at manufacturing super-large, super-thin and big radian segment permanent ferrite magnet, with good magnetic property and quality which equal to international advanced counterparts's, its products are marketable and popular. Welcome customized orders. Inquire us now for more info.
Product Parameters

Grade	Remanence (Br)		Coercivity (HcB)		Intrinsic Coercivity(HcJ)		(BH)max
	mT	KGauss	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe
Y8T	200~235	2.0~2.35	125-160	1.57-2.01	210-280	2.64-3.51	6.5-9.5	0.8-1.2
Y22H	310~360	3.10~3.60	220-250	2.76-3.14	280-320	3.51-4.02	20.0-24.0	2.5-3.0
Y25	360~400	3.60~4.00	135-170	1.70-2.14	140-200	1.76-2.51	22.5-28.0	2.8-3.5
Y26H-1	360~390	3.60~3.90	200-250	2.51-3.14	225-255	2.83-3.20	23.0-28.0	2.9-3.5
Y26H-2	360~380	3.60~3.80	263-288	3.30-3.62	318-350	3.99-4.40	24.0-28.0	3.0-3.5
Y27H	350~380	3.50~3.80	225-240	2.83-3.01	235-260	2.95-3.27	25.0-29.0	3.1-3.6
Y28	370~400	3.70~4.00	175-210	2.20-3.64	180-220	2.26-2.76	26.0-30.0	3.3-3.8
Y28H-1	380~400	3.80~4.00	240-260	3.01-3.27	250-280	3.14-3.52	27.0-30.0	3.4-3.8
Y28H-2	360~380	3.60~3.80	271-295	3.40-3.70	382-405	4.80-5.08	26.0-30.0	3.3-3.8
Y30H-1	380~400	3.80~4.00	230-275	2.89-3.46	235-290	2.95-3.64	27.0-32.5	3.4-4.1
Y30H-2	395~415	3.95~4.15	275-300	3.45-3.77	310-335	3.89-4.20	27.0-32.0	3.4-4.0
Y32	400~420	4.00~4.20	160-190	2.01-2.39	165-195	2.07-2.45	30.0-33.5	3.8-4.2
Y32H-1	400~420	4.00~4.20	190-230	2.39-2.89	230-250	2.89-3.14	31.5-35.0	3.9-4.4
Y32H-2	400~440	4.00~4.40	224-240	2.81-3.01	230-250	2.89-3.14	31.0-34.0	3.9-4.3
Y33	410~430	4.10~4.30	220-250	2.76-3.14	225-255	2.83-3.20	31.5-35.0	3.9-4.4
Y33H	410~430	4.10~4.30	250-270	3.14-3.39	250-275	3.14-3.45	31.5-35.0	3.9-4.4
Y34	420~440	4.20~4.40	200-230	2.51-2.89	205-235	2.57-2.95	32.5-36.0	4.1-4.4
Y35	430~450	4.30~4.50	215-239	2.70-3.00	217-241	2.73-3.03	33.1-38.2	4.1-4.8
Y36	430~450	4.30~4.50	247-271	3.10-3.40	250-274	3.14-3.44	35.1-38.3	4.4-4.8
Y38	440~460	4.40~4.60	285-305	3.58-3.83	294-310	3.69-3.89	36.6-40.6	4.6-5.1
Y40	440~460	4.40~4.60	330-354	4.15-4.45	340-360	4.27-4.52	37.6-41.8	4.7-5.2

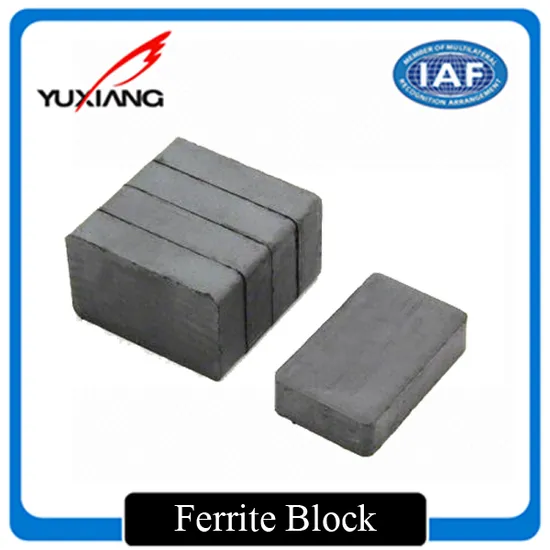

Detailed Photos
After Sales Service
For more detail info, please feel free to visit our website or inquire us at any of your convenience...
Ying Jun
Senior technical manager
Yuxiang Magnetic Materials Ind. Co., Ltd
Add: Floor 16, Jinyuan plaza, # 57 Hubin Nan Road, Xiamen, China 361004



(E-mail): mag (a)e-magnet(.)cn




live:yuxiang5716

---
