High Precision T Beam Drilling Machine for Metal Processing

Product Description

ZMDE Industrial Metal Processing High Precision Building T Beam Drilling Machinery
------------------------------------------
>Cost-effective and Efficient Equipment <
1. Constructed from robust materials, our machinery boasts a remarkably low failure rate, ensuring reduced maintenance costs. Key components such as ball screws, linear guides, hydraulic parts, electrical elements, servo motors, and frequency converters are sourced from industry-leading brands.
2. The CRT display facilitates automatic chip removal, significantly cutting down on manual cleaning time and costs.
3. Our high-precision equipment ensures a superior qualification rate for workpieces, thereby minimizing consumable costs.
>Simple Operation, Maximum Productivity <
1. The user-friendly human-machine interface is clear and intuitive, enabling the generation of automatic machining programs.
2. With CNC and PLC controls, our equipment achieves precise positioning for meticulous operations.
3. Hydraulic clamps secure the workpieces, allowing the operator to control the process effortlessly via a foot switch.
4. Equipped with 12 rapid hydraulic clamps positioned around the table, it can clamp four groups of workpieces simultaneously.
5. Small workpieces can be clamped at the table's corners, markedly reducing production preparation time and enhancing efficiency.
6. The ability to clamp small workpieces at the table's corners accelerates production preparation and boosts efficiency.

> Guaranteed Quality, Versatile Applications <
1. Critical components like the gantry, column, and table are fabricated from solid materials, with the main machine weighing up to 6300kg.
2. Our machine serves a wide array of industries, proving indispensable for connecting plate processing.
3. Accommodates a broad range of drilling diameters from 12mm to 50mm.
> Ideal for Various Production Scenarios <
1. Supports continuous production of multiple batches of single flat-type workpieces.
2. Suitable for small-batch production of various workpieces, processing different plate shapes such as rectangular, round flange, and polygonal. It can concurrently handle two or four plates of differing specifications.
3. Facilitates the production of multiple layers of thin sheets stacked up to a maximum of 100mm for drilled holes.
4. The upper computer software automates the processing of start and end points, capable of drilling through holes, blind holes, step holes, and hole-end chamfers.
> Streamlined Production Process Automation <
1. Integrated line board system offers a high degree of automation, with automatic positioning per the drilling program.
2. Adjusts optimal feed volume according to different hole diameters.
3. Capable of automatically and continuously processing large hole diameters, achieving one-time processing and molding.
4. Features an efficient automatic chip removal function.
Technical Parameters

Machine Configuration

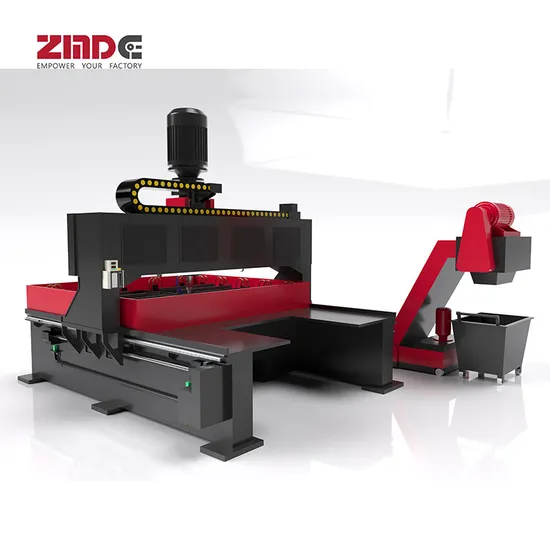

High Precision CNC Radial Drill for H-Beam Processing
Model.		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Width (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1pc
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW

Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
