HY-Z06 Constant temperature single cylinder vacuum impregnation machine

Product Details

Product Description

Product Description

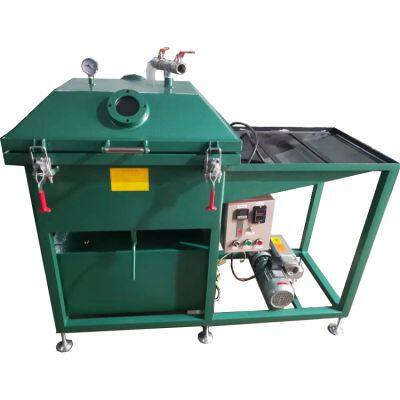

HY-Z06 Constant temperature single cylinder vacuum impregnation machine
Inner dimensions L700*W530*H200mm
Outer dimensions L1500*W900*H1100mm
Weight about 190Kg
The vacuum box cover is manually opened and closed by the auxiliary support rod.
Vacuum pump configuration
1. Power supply voltage: 380V, power: 750W
2. Configure the selected vacuum pump 020
3. Vacuum pump pumping speed: 20 cubic meters per hour
4. Vacuum limit: -0.1MPA
Heating system
1. Heating pipe plus heat transfer oil method for heating
2. Power 3KW
3. Temperature adjustment room temperature -200 degrees.
1. The vacuum box body is made of 6mm national standard high-quality steel, and the vacuum box cover is made of 6mm national standard high-quality steel welded surface.
2. The bracket is welded with 40X40X2 mm thick square tube.
3. Imported silicone sheet for sealing system (service life of more than 2 years).
Scope of application: Mainly used for impregnation of high and low frequency transformers, inductors, coils, motors and other products.
Performance and characteristics of vacuum impregnation machine
Product classification description:
Vacuum impregnation machine is a kind of equipment suitable for high and low frequency transformers, inductors, coils, motors, inductors, rectifiers, hardware castings and C-type iron cores for impregnation treatment. It has the functions of improving the mechanical strength and insulation strength of the coil, moisture-proof, mildew-proof and noise reduction. Resin filling of various metal film capacitors, electrolytic capacitors, vacuum degassing process of medium/small resin crafts, and vacuum degassing process of various plastic PU raw materials. It can improve product quality, reduce production costs, save and increase efficiency, and protect the environment. The equipment generally has dozens of varieties such as assembly type, bulk type, square cylinder type, single machine multi-cylinder type, multi-machine single cylinder type and multi-machine multi-cylinder type.
The main functions of vacuum impregnation machine are as follows:
1. Put the object to be impregnated into the cylinder, close the cylinder cover and lock it by the cylinder cover locking device. 2. Vacuum negative pressure and maintain the pressure for a period of time; press the liquid in the liquid storage barrel into the cylinder under the action of the atmosphere, and close the liquid inlet pipe after the liquid reaches a certain height. 3. (Continue) Vacuum: maintain the pressure after reaching a certain negative pressure. 4. Balance (inhale), open the suction (exhale) pipe mouth, and the air naturally enters the cylinder under the action of atmospheric pressure, so that the pressure inside the cylinder is equal to the pressure outside the cylinder. 5. Add positive pressure (mainly to make the liquid in the cylinder enter the object. Make the object in the cylinder soaked in liquid balanced or soaked), 6. Exhaust (exhale and vent), open the (inhale) exhalation pipe mouth to exhale the air in the cylinder. The pressure reaches the same as the outside of the cylinder. 7. Pressurize and discharge the liquid, and press all the liquid in the cylinder out by adding positive pressure. At this time, the discharge port is closed (maintain the pressure in the cylinder) 8. Exhaust again to balance the pressure inside and outside the cylinder. 9. Drain the liquid and take out the object. 1) 3, 4, 5, 6, the working procedures can be repeated until the impregnated objects in the cylinder are evenly impregnated. 2) The positive and negative pressures in the cylinder are determined according to customer requirements. 3) The maximum positive pressure in the cylinder can reach 0.6MPa (6.12KG/CM); the maximum negative pressure can reach 1.02×10MPa. 4) The impregnation efficiency and product quality are greatly improved.

---
