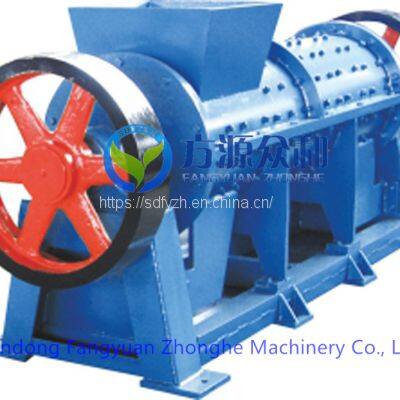

FCM coarse grinding machine is mainly used for mechanical pulping of raw materials, such as grass, wooden materials, bamboo materials, it can replace the traditional slot-style pulping machine. The equipment consists of compound rotor, fly-cutter, bottom knife, pulley, slot body, motor, etc. Its working principle is that raw material enter the wringing cage through the feed inlet, with the interaction of the flying knife and the bottom knife, the fibers are extruded and wiping to produce a silk broom. By adjusting the gap between the flying knife and the bottom knife, the paper pulp of different degrees of dissociation can be dredged.
Model
| FCM-30
| FCM-55
| FCM-75
| FCM-110
| FCM-160
| FCM-200
|
Diameter of rotor(φ)
| 360
| 420
| 480
| 500
| 600
| 800
|
Dimension of inlet pulp(mm)
| 420×440
| 500×520
| 560×580
| 600×620
| 600×620
| 600×620
|
Dimension of outflow pulp(mm)
| 200×400
| 250×400
| 250×450
| 280×450
| 280×450
| 280×450
|
Production capacity(T/D)
| 10-20
| 15-30
| 40-70
| 50-80
| 80-120
| 120-160
|
Equipped power(kw)
| Y200L-4/30
| Y250M-4/55
| Y280S-4/75
| Y315S-4/110
| Y315L1-4/160
| Y315L2-4/200
|
Our Services
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Company Information
Fangyuan Zhonghe Machinery Co., Ltd. (formerly Zhucheng Fangyuan Machinery Co., Ltd.) is the backbone enterprise specializing in the production of environmental-friendly pulp and papermaking equipment, tissue paper machine and sewage treatment equipment. The company is next to Qingdao free trade zone Zhucheng functional area. The main products include two categories, more than 50 series, sewage treatment equipment, pulp and papermaking equipment and crescent tissue paper machine. With the high technology content, it has reached the advanced level of the same industry in China.
FAQ
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for more than 20 years of experience
Q2. How to install the equipment?
A: We can give you guide by video, voice, email af all kinds chatting APP
If there's still doubt, we can arrange the professinal engineer to install in your country
Q3. How do you pack the products?
A: Normally as the export standard or as your needs
Q4. What is your available port of shipment?
A: Qingdao port, etc.
Q5. Do you offer guarantee for the products?
A: Yes, under the right condition, we can offer time warranty for our products
>>
