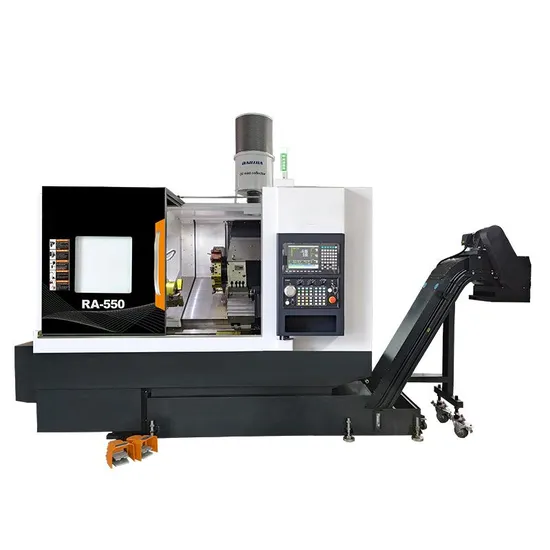

Heavy-Duty CNC Slant Bed Turret Lathe for Steel Structures and Soft Metals

Product Description

Introducing our state-of-the-art Automated Vertical CNC Drilling Lathe, meticulously crafted with a precision-engineered slant bed, delivering unparalleled accuracy and exceptional efficiency. This groundbreaking machine is set to transform and elevate manufacturing capabilities to unprecedented levels.
Product Description

Processing Capability			Unit	HMS-550M
Processing Capability	Maximum bed swivel diameter		mm	Φ580
	Maximum machining diameter		mm	Φ420
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	510
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	260
		Z-Axis	mm	600
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT55-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	460
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	80

Product sample

Packaging & Shipping

FAQ
1. What are the Payment Terms?
A: We accept T/T payments. To secure your order, a 40% initial deposit is required, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, allowing you to choose the most convenient option.
3. When is the delivery time?
A: For our standard Automated Vertical CNC Drilling Lathe, delivery is guaranteed within 30 days. Custom or special machines may take longer. Please refer to our delivery schedule when placing your order.
4. What is your minimum order quantity and warranty?
A: The minimum order quantity is just one set, and we provide a robust one-year warranty.
5. How are the machines packaged?
A: Each machine is securely packed in a strong wooden case to ensure it arrives in pristine condition.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for your needs. You can also select the model yourself.
Alternatively, send us your product drawings, and we will determine the ideal machine configuration for you.

---
