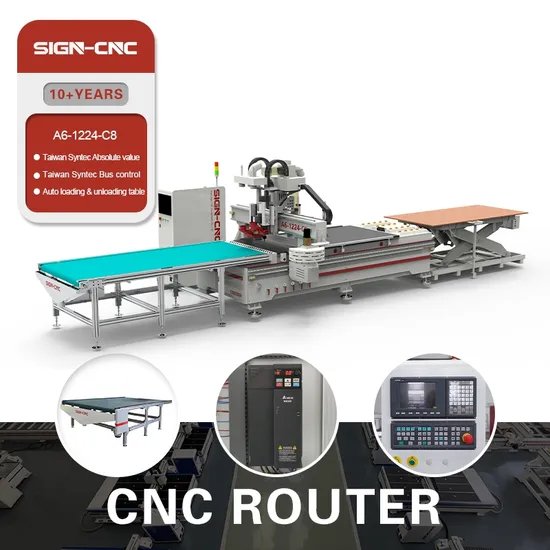

CNC Router for Wood Cutting Machine with Automatic Loading and Unloading Table and Row Drilling Wood Working Furniture Making Machine

US$18,300.00
1-2 Pieces
US$18,000.00
3-6 Pieces
US$17,900.00
7+ Pieces

Basic Info.

Model NO.
A6-1224-C12
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Model
A6-1224-C12
Size
1200*2400mm
Spindle Height
300mm
200mm
Vacuum Table
Max. Power Consumption
2.0kw
Max. Working Speed
25000mm/Min
Spindle Power
9.0kw Hqd
Spindle Speed
0-24000rpm
Drive Motors
Yaskawa Servo Motor
Control System
Syntec
Transport Package
Wooden Package
Specification
13 cubic meter package
Trademark
SIGN-CNC
Origin
China
HS Code
8465990000
Production Capacity
1000set/Year

Packaging & Delivery

Package Size
3800.00cm * 2900.00cm * 2500.00cm
Package Gross Weight
1600.000kg

Product Description

CNC Router for Wood Cutting Machine with Automatic Loading and Unloading Table and Row Drilling Wood Working furniture making machine Specification
Model
 SIGN-1224
X, Y Working size
1200*2400mm
Z feed Height
 300mm
Table Surface
 Vacuum table
X, Y Structure
 Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
 TBI Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
 33000mm/min
Max. Working Speed
 25000mm/min
Spindle Power
 9.0KW HQD ATC spindle
Spindle Speed
 0-24000RPM
Drive Motors
 Yaskawa servo motor and driver
Working Voltage:
 AC220V/50/60Hz
Command Language
 G code
Control System
 SYNTEC 6MB
X,Y,Z repositioning Accuracy
 ±0.01mm
X,Y Resolution
 <0.01mm
Software
 Artcam
Running Temperature
 0 degree - 45 degree
Relative Humidity
 30% - 75%
Optional Parts
 Rotary system,
Panasonic Servo motors

Jinan Sign CNC Equipment Co., Ltd.
FAQ
1. How can I run it ?Send you the operation video and English instruction for use.We provide free technical support 2. What else I need except the machine?computer for design drawing ,ATC machine use air compressor3.What is the warranty?2 years.4. What is your payment?T/T 30% deposit ,70% before shipping. L/C at sight
