Hot sale UPVC window Welding Machine

Product Details

Product Description

Product Description

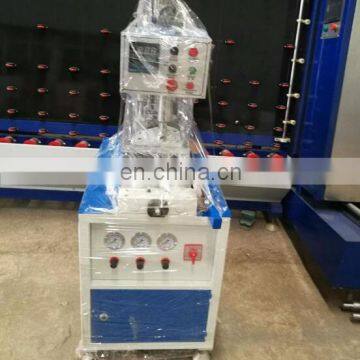

Hot sale UPVC window Welding Machine
Product Description
This machine is used for PVC door and window welding processing with variable angle ranging from 30~180º, It features programming control,pneumatic driving,reliable function,simple operation and convenient maintenance.The machine is made up of machine head.machine frame,electric controlling tank and material support etc,There are fixing machine,pressing machine and heating machine etc.
Working Air Pressure 0.5~0.8Mpa
Air Consumption 50L/min
Power Supply 220V 50Hz
Total Power 1.2kw
Welding height 20~120mm
Max.width of profile welded ≤120mm
Max.cut dimension of profile welded 330mm
Outside Dimension 960*900*1460mm
Weight(about) 280kg
Packaging & Shipping
Remarks:
A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 7 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.
F. Guarantee period: 1 year from the date of customer receiving the machines.
