Hot Sale Factory Price Low Cost 12/24/48/72/96/144/288 Splices Fiber Heat-Shrink Dome Fiber Optic Cable Splice Closure (FOSC400)

Product Description

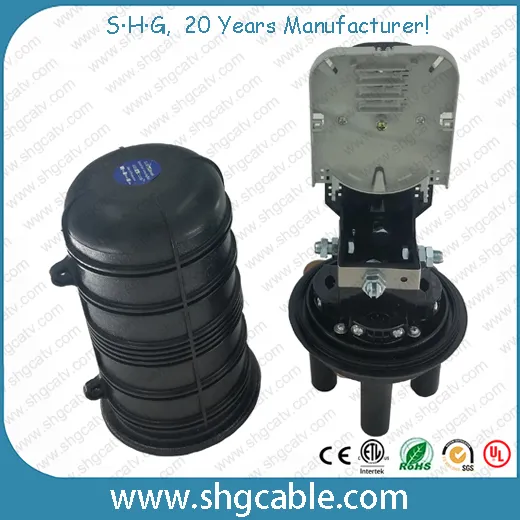

SHG dome fiber optic splice closure(FOSC400) can accommodate up from 6 to 576 fiber. They can be used in any environment, with excellent weather performance, waterproof, dustproof.
Pictures
SHG dome type heat shrink and mchanical Fiber optic splice closures (fiber enclosure FOSC400) are widely apply for the connecting of optical cable. The dome material mixed chemical agent to resist corrosion and aging and also provide ultra-violet protection.
Features
1. The material of FOSC body: Ageing resistance & ultraviolet radiation resistance
2. Base-to-dome seals on FOSC are mechanical and heat-shrinkable for ease of installation and reentry.
3. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core,
Slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, and repair)
4. No special tools are needed to open the closure, and it can be opened and used repeatedly.
5. Small holes +1 oval hole
6. Small holes(dia. 2cm) +1 oval hole
7. Small holes(dia. 2cm) +1 oval hole
Technical Parameter:
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 70~150Kpa
3. Axial Tension: >2000N/1min
4. Stretching Resistance: 2500N/10 square centimetre(1min)
5. Insulation resistance: >2*104MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss

Main accessories and special tools
No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Heat shrinkable fixing sleeve (single)		Fixing and sealing single fiber cable	Configuration as per requirement
4	Heat shrinkable fixing sleeve (mass)		Fixing and sealing mass of fiber cable	Configuration as per requirement
5	Branching clip		Branching fiber cables	Configuration as per requirement
6	Earthing wire	1 piece	Putting through between earthing devices
7	Desiccant	1 bag	Put into FOSC before sealing for desiccating air
8	Labeling paper	1 piece	Labeling fibers
9	Special wrench	1 piece	Tightening nut of reinforced core
10	Metal hoop	1 set	For wall mounting and pole hugging
11	Buffer tube	decided by customers	Hitched to fibers and fixed with FOST, managing buffer.	Configuration as per requirement
12	Aluminum foil paper	1 pc	Protect the bottom of Fiber Optic Splice Closure and cable inlet/outlet tubes when heat the heat shrinkable sleeves.

Other products
We, SHG produce the quality, we focus on quality in the past 20 years.
Production Workshop
Certificates
CE, RoHS, ISO9001
Our Advantages Why Choose us
FAQ FAQ
Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.
Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some on stock, then 2 days, and some not on stock, usually it take 7-25 days after order confirmed (deposit received).
Q4. Where is your nearest sea-port and airport?
SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q4. What's your Payment Term?
SHG: We perfer T/T. Amount above 3000USD, 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation:
SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.

---
