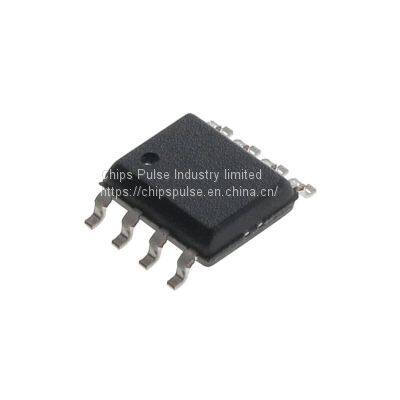

MC34072DR2G

Product Details

Product Description

Product Description
Product attribute attribute value search is similar
Manufacturer: ONSEMI
Product category: Operational Amplifier - operational amplifier
RoHS: Details
Installation style: SMD / SMT
Package / box: soic-8
Number of channels: 2 channels
Supply voltage - maximum: 44 V, + / - 22 V
GBP gain bandwidth product: 1.8 MHz
Output current of each channel: 5 Ma
SR - conversion rate: 2.1 V / us
Vos - input bias voltage: 5 MV
Supply voltage - Minimum: 3 V, + / - 1.5 V
Minimum operating temperature: - 40 C
Maximum operating temperature: + 85 C
IB - input bias current: 100 Na
Working power supply current: 440 UA
Shutdown: no shutdown
CMRR - common mode rejection ratio: 80 dB
En - input voltage noise density: 32 NV / sqrt Hz
Series: mc33172
Encapsulation: Reel
Encapsulation: cut tape
Encapsulation: mousereel
Amplifier type: low power amplifier
Trademark: ONSEMI
Dual power supply voltage: + / - 3 V, + / - 5 V, + / - 9 V
Height: 1.5 mm
In - input noise current density: 0.2 PA / sqrt Hz
Length: 5 mm
Maximum dual supply voltage: + / - 22 V
Minimum dual supply voltage: + / - 1.5 V
Operating power supply voltage: 3 V to 44 V, + / - 1.5 V to + / - 22 V
Product: Operational Amplifiers
Product type: op amps - Operational Amplifiers
PSRR - power rejection ratio: 80 dB
two thousand and five hundred
Subcategory: amplifier ICs
Power type: single, dual
Technology: Bipolar
VCM - common mode voltage: negative rail to positive rail - 1.8 V
Voltage gain DB: 113.98 DB
Width: 4 mm
Unit weight: 540 mg

---
