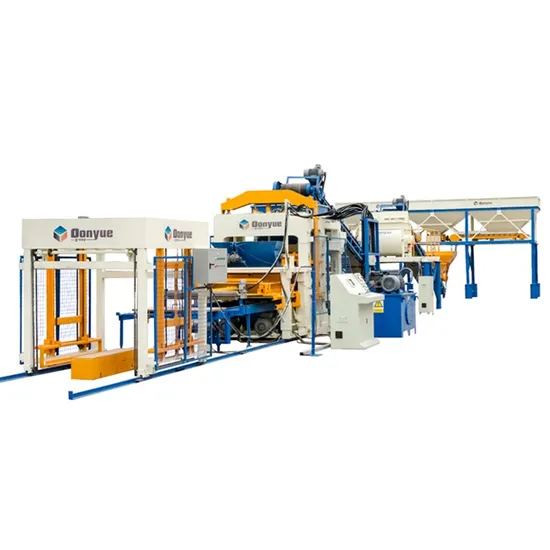

Qt12-15 Brick Machine Making Automatic Interlocking Brick Machine

Product Description

QT12-15 Automatic concrete block making machine block making machinery
Product Description
Main feature QTF12-15 automatic concrete cement block making machine
QTF12-15 is a full automatic brick machine production line, its shape design is reasonable, the production efficiency is high. It have following features:
1.Material and welding
All material and spare parts selected according to international CE standard, Carbon dioxide protection will assure whole line stable running.
2. Electric control system
We selected original Mitsubishi PLC combine with independent machine control system to assure stable and high-efficiency working status.
3.Switches and motor
Switched will use Japan Omron or France Schneider, motor will use Siemens or ABB band.
4.Hydraulic system
The machine adopting the advanced hydraulic molding technology, it can assure the block machine have stable and high-efficiency working status, and the blocks produced are of better quality,larger density and higher strength.
5.Block mould
Our block moulds are made of 16# manganese steel.Besides the good raw material, precise line cutting technology and 900ºC carburizing heat treatment technology are all adopted in the process of brick moulds production.Then the mould size error can be controlled within 0.002mm . The surface layer of the brick moulds get higher hardness (achieving HRC54-58) and better wear resistance.
6. Vibration system
The machine adopts the special technology to optimize the vibration shaft, so that the proportion of vibration is covered in the whole surface range, so the product quality is greatly improved and the noise is effectively reduced. The machine's unique fixed platform design forms can improve the molding speed and dimensional accuracy.

Main technical parameter
Dimension of host machine	3800*2500*3550mm	Host machine power	56.2KW
Weight of host machine	13500kg	VIbratioon force	130KN
Moulding area	1340*840mm	Models of mixer	JS1000
Water consumption	15-25T/Day	Froming period	15-20S
The size of the pallet	1400*900*30mm	Workshop	200mm

Theoretical production capacity
Size(L*W*H)	Pcs/Mould	Pcs/Hr	Pcs/8Hr
400*100*200mm	22	5280	42240
400*120*200mm	18	4320	34560
400*150*200mm	14	3840	30720
400*200*200mm	12	2880	23040
400*250*200mm	10	2400	19200
240*115*53mm	60	14400	115200
Paver:200*100*60mm	42	7560	60480
Paver:200*163*60mm	28	5040	40320
S paver 245*122.5*60mm	30	5400	43200
1000*200*300mm curbstone 1000*180*300mm curbstone 1000*150*300mm curbstone	2	360	2880
1000*80*200mm curbstone	10	1800	14400

The block mold is customizable and replaceable to produce different kinds of blocks according to your requirement.
Detailed Photos
1. Advanced drive by wire technology and hydraulic conveyance system can assure you an easy operation and well performance.
2. It will make more blocks than others you may get from other sources, which suit to you who need more solid blocks.
3. The speed of making blocks will be more higher. It has an easy operation with little error.
4. High-intensity can make blocks stacked in a short time.
5. As for the quality of it , I must say that we use the steels of high quality, which was produced by JI steel making company known to all throughout China. The quality of our machine is guaranteed.
6. The mold use the technology of carburization heat treatment , which can give you a guarantee that there will no transformation with 4 million blocks about 6-8 months.
7. Hydraulic brick making machine line can produce all size of hollow blocks,solid bricks interlocking blocks and paver, just change the relevant moulds.
8. The materials can easily get and the source of material are widely enough to get.
9. Our product is of excellent quality and reasonable price. The high technology, high quality, high efficiency will lead to a high return rate, so this kind of machine will be your best choice.

Working Process
1. Material Batching and preparation Section: Raw materials are discharged to the mixer from three Hopper batching machine, as there is a hole under ground. The mixed raw materials are sent to the mixer.
2.Mixing Section: After being mixed evenly with water, raw material are unloaded to the block making machine through belt conveyor.
3.Block pressin Section: .Mixed raw material are then sent to the mould case. Under PLC computer intelligent control. Hydraulic transmission, vibration, shaping takes place.
4.Automatic Stacker Section:After demoulding ,green brick will be unloaded to the bamboo pallet.
5.Block Curing Section :.Wet product will be conveyed through green block conveyor then to the stacker.
Finished blocks

ANY BLOCK TYPE, JUST SEND US SIZE AND PICTURE, WE CAN MAKE DRAWING FOR YOU! MOULD CAN BE CUSTOMIZED!


Packaging & Shipping

After Sales Service
1.We are the only company in this area that have oversea office,we have office in India(Two office,one is in Bhubaneswar,the other is in Ahmedabad), Indonesia, Vietnam.And we have spare parts warehouse in India. It will help our client to get better after-sale service.
2.Rich experience : We have exported our block machine to more than 200 countries,up to now,we have more than 100 sets in India.
Company Profile
DONGYUE MACHINE GROUP
Long History With Rich Experience
Our company has been in brick making machine for 22 years .With long time experience, our customers come from Middle East,South East Asia,Africa,South American and we has exported more than 40 countries.Sincere Service return to our customers
Our block machine has providedmore than 1,000 sets of block machines to different customers to make huge profit.
Perfect After-sale Service
Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved,
we will fly to your place for help.Installation concrete blockmachine& train of workers

---
