Complete Set Semolina Mealie Meal Maize Flour Milling Processing Equipment Wheat Milling Corn Mill 10-20 Tonnes Posho Mill Devices Prices

Product Description

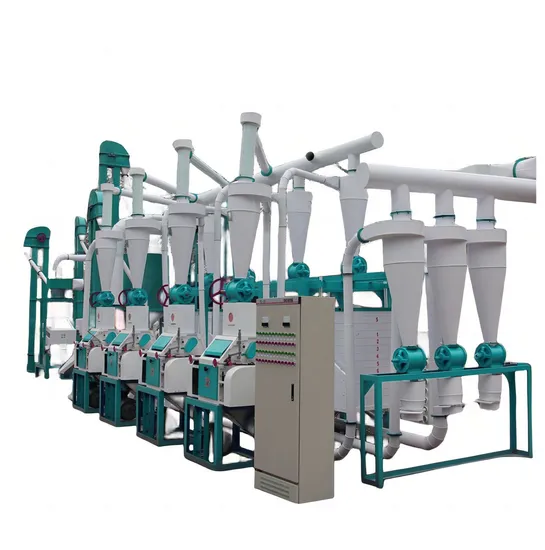

20Ton/24h Maize flour milling machine
Posho mill is popularly used in processing maize into maize flour or Ugali flour. It is widely seen in Eastern Africa countries,like Kenya,Uganda,Zambia, Mozambique,Tanzania,etc. Normally a small scale posho mill is a hammer mill only without maize cleaner and dehuller. The output grade twi flour market price is cheaper than sifted maize flour which comes from complete maize roller milling and sifting mill.
Introduction:
1.Cleaning part:
To clean out the middle and small impurity from wheat,corn,maize. e.g., dust, stone, magnetic material, wheat,corn,maize was bitten by insect and so on. Includes beating, screening, destoner, magnetic separator and dampening.this section is make the wheat,corn,maize to prepare for milling part and to protect the machinery as well.
2.Milling part:
Include different number of mill and sifter to mill the wheat,corn,maize and separate the flour and bran
(1) Mill: mill the wheat,maize,corn to break the integrity by the roller moving
(2) Sifter: to separate the flour and bran, also separate large size and small size to ensure flour quality.
3.Packing part:
The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.

Product: Grade one maize flour; maize skin collected as by-product animal feed
Output: 70-75% Grade one maize flour, Ugali flour
20-25% maize bran(as animal feed)

Capacity	Power	Capacity	Power
5t/24h Maize Mill Machine	32kw	5t/24h Wheat Mill Machine	17kw
10t/24h Maize Milling Machine	49kw	10t/24h Wheat Mill Machine	38kw
20t/24h Maize Flour Milling Machine	97kw	20t/24h Wheat Flour Mill Machine	61kw
30t/24h Maize Flour Milling Machine	103kw	30t/24h Wheat Flour Mill Machine	75kw
50t/24h Maize Flour Mill Machine	154kw	50t/24h Flour Mill Machine	180kw
100t/24h Corn Mill Machine	186kw	100t/24h Flour Mill Machine	436kw
150t/24h Corn Flour Mill Machine	253kw	150t/24h Wheat Flour Milling Machine	470kw
200t/24h Maize Milling Machine	362kw	200t/24h Wheat Flour Milling Machine	718kw
300t/24h Maize Milling Machine	425kw	300t/24h Wheat Flour Milling Machine	890kw
500t/24h Maize Milling Machine	720kw	500t/24h Wheat Flour Milling Machine	1500kw

Detailed Photos
Product Parameters
Technical Parameters

Technology in cleaning part	One combined cleaning machine,one peeling machine,one crusher.one suction separator.
Technology in milling part	Three sets of 6F2240 roller mill,one FSFS 83*83*12 plan sifter,one brush machine
Production capacity	15-20tons of corn / 24 h
Power supply	About 75kw
Used under	Voltage: 380 V, Frequency: 50 HZ, below an elevation of 1000m.
Workshop style and dimension	Triangle-framed workshop, with 16.5m long and 5m wide and 4.5m under the beam.
Container	1*20'
Installation expenses	This service is the charged service, which includes installation, test running, and training local operators. This complete equipment requires two technicians for guiding installation. The buyer should provide for technicians return tickers, local food and boarding, transportation, medical insurance, and the salary

Processing Capacity(24hours)	Total Power	Workshop size advice (L*W*H)	Loading container
10 ton raw maize	≈45kw	>15m*6m*6m	20GP
20 ton raw maize	≈64kw	>20m*6m*6m	20GP

Main Features
1.Automatic whole line can save workers, one person can be available for operation.
2.Complete function processing as cleaning wheat, corn maize, peeling maize, and grinding wheat, corn maize into wheat, maize corn flour and maize corn grits and wheat, maize bran.
3.Clean wheat, corn maize to remove stone, metal, sand and all sorts of impurities.
4.Peel maize to remove maize skin, remove maize germ, remove black maize hilum. After cleaning and peeling, it prepares best maize material for further processing into maize flour or grits.
5.You can choose the mesh to make the flours fine as you requirement.
6. Simple structure in linear type, easy in installation and operating.
7. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
8. High pressure double crank to control the die opening and closing.
9. Apply a linker to connect with the air conveyor, which can directly inline with filling machine

Company Profile
Customer Visit
Packaging & Shipping
FAQ
Q1.Are you the manufacturer?
Yes,Our factory was build in 1983 year,we are specialized in complete wheat,maize and other grain flour milling processing machine.
Q2. Does the flour mill can produce different kind of maize meal, maize flour same time?
Yes, the flour mill line can produce different size maize meal or maize flour at same time at one production line
Q3. Does the flour mill line can running with Generator?
Yes, the flour mill line can running with Generator
Q4. Does the flour mill packing machine can pack different bags?
Yes, the packing machine can pack 1kg-5kg; 5kg-20kg, 12.5kg-25kg, 50kg
Q5. Does the flour mill line can processing maize and wheat same time?
No, it is because the maize and wheat Physical Characteristics is different, like the shape, the hardness, all are different, and the final product flour size is also different. The cleaner, the roller mill parameter, the plan sifter sieve all are different. As professional manufacture for maize meal or flour, cannot processing maize and wheat same time.
Services
What is the after sale service our company provide of corn flour milling machinery?
1. Two years spare parts delivery together with the machine.
2. Warranty 2 years of corn flour milling machinery.
3.Chinese professional engineer guide installation and commissioning.

---
