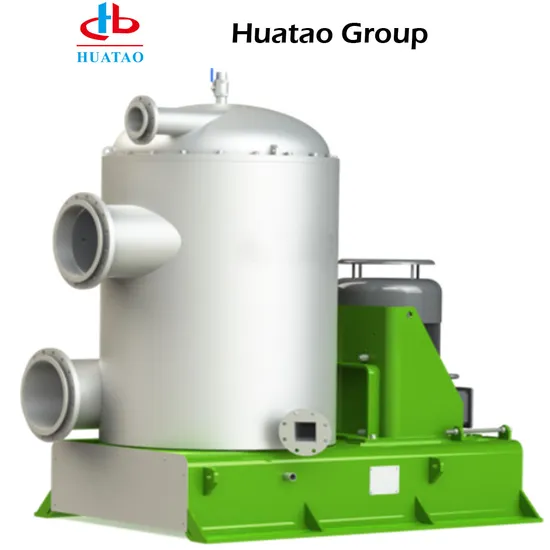

SS304 Screen Basket Inflow Pressure Screen for Paper Pulp Machine

Product Description

SS304 Screen Basket Inflow Pressure Screen For Paper Pulp Machine
Product Description
1. The pressure screen can make light impurities and the air in the stock naturally go up to the outlet, while the heavy impurities drop in the bottom and then be discharged, which greatly reduces the friction of the rotor and screen frame.
2. The utilization of upflow structure design eliminates the turbulence that may cause the vibration of the screen. In addition, the upflow design can also prevent impurities from mixing with the stock.
3. The pulp screen is known for large production capacity and wide range of application. It is applicable to stock of various consistencies, like medium consistency stock (2%-3.5%) and low consistency stock (0.5%~1.2%).
4. High screening efficiency and low power consumption.

Product Parameters

Type	HT81	HT82	HT83	HT84	HT85	HT86
Screen Area: m2	0.8	1.5	2.5	3.5	4.5	6
Screen consistency: %	0.8-2.0
Range of the screen hole: mm	1.2-1.8
Range of the screen slot: mm	0.10-0.25
Flow rate: L/s	35-80	60-140	110-250	150-340	200-450	280-660
Power of motor: kw	30	45	55	75	90	132

Detailed Photos
Related Pulp Poducts

Our Professional Team

1. Very Strong Professional Team with 13 years experience, office staff 35 people.
2. Excellent Oral English Ability to communicate with foreign customers.
3. Strong responsibility and good after sale service . Refund money or replace for free for any quality problem.

---
