CE EPA Small Mini Excavator Mini Digger 2 Ton 1 Ton Attachments Micro Excavadora Mini Bagger Excavator Machine

Product Description

Product Description

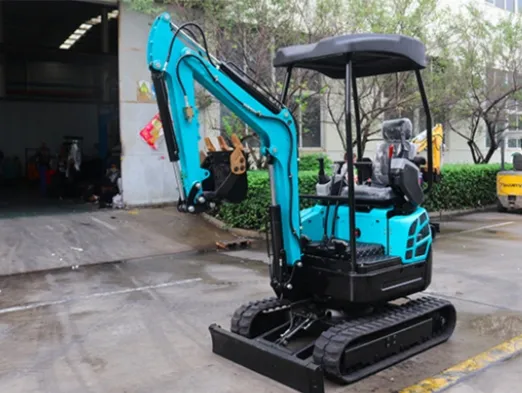

Powerful and affordable mini excavators
These mini but powerful machines are now the go-to choice for small construction projects. Due to their compact size, mini excavators can maneuver easily in places where large excavators struggle, making earthmoving easy and speeding up projects.

Detailed Photos
adopt kubota disel engine,international famous brand,quality assurance
piston pump load sensitive,soft and powerful action,low engine temperature,engergy and fuel saving.
double row bead slewing support. high speed .high efficiency. more flexible and more stable.
double-rotary motor ,double rotary suport force is large.long life,play a buffer role,soft, comfortable and satble movement.
the bulldozer hlade is widened and thickened ,durable
operation lever,simple and flexible,easy to operate
1. Standard configuration:
Tailless slewing, hydraulic pilot
Kubota D722 engine, EPA4 and Euro 5
Seat-type hydraulic safety lock
Extra-large LCD display
Foot-operated bulldozer, crushing control system
2. Optional configuration:
Side swing of the boom (60 degrees for each left and right swing arm)
Chassis telescopic can be installed, with a telescopic range of 95cm-120cm
Cab, air conditioning and heating can be installed, no worries for all-weather operation
Standard fuel engine, optional 380V/220V/110V electric motor or lithium battery
Product Parameters

MODEL		KV18
Bucket capacity	cbm	0.03
Chassis width	mm	1160
Track length	mm	1250
Gradeability	degree	40
Chassis ground clearance	mm	385
Track width	mm	230
Volume of fuel tank	L	15
Overall dimension	mm	2200*1100*2200
Transport length	mm	2200
Excavatr height	mm	2200
Hydraulic flow	L/Min	40
Hydradulic tank capacity	L	16
Working pressure	Mpa	16
Engine		kubota d722(euro 5 and epa emission
Engine power	kw	10.3
Max.digging height	mm	2700
Max. dumping height	mm	1900
Max.digging depth	mm	1910
Max.digging radius	mm	3280
Turning radius	mm	1636
Bucket excavating force	KN	15
Operating weight	KG	1500
Configuration		Valve:beifang brand
		Pump:k jun brand
		load sensitive system

Application Scenario
Packaging & Shipping

After Sales Service

Small Hydraulic Crawler Machine Excavator Mini Excavadora 1.0 1.2 1.5 1.8 Ton Mini Bagger Digger Excavator Company Profile

FAQ
Q1: Are you a manufacturer?
A1: Yes. We have ourselves factory, our products are designed and developed by ourselves,have 3000 square meters factory.
Q2: What is your quality control process?
A2:We do 100% testing for all products before packing. We have an excellent QC process and department, they will check every product to make sure it can be used before shipment.
Q3: How long is your guarantee term?
A3: Our product have one year guarantee.
Q4: What's the payment way?
A4: T/T,L/C,D/P,D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
Q5: Do you accept ODM/OEM orders?
A5: Yes,we can accept OEM/ODM ,MOQ:5pcs you can change logo and functions if you need.
Q6: how can we guarantee quality?
A6: Always a pre-production sample before mass production;
Q7: what can you buy from us?
A7:Excavator,Forklift,Loader,Grader,Bulldozer

---
