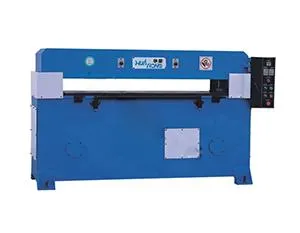

Xclp3 Series Precise Hydraulic Four-Column Plane Cutting Machine

Product Description

HMT-XCLP3 SERIES AUTO-FEEDING PRECISE HYDRAULIC FOUR-COLUMN PLANE CUTTING MACHINE
I.USAGE AND CHARACTERISTICS
Usage and characteristics:
The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by die cutter. For example: such industries as plastics packing, pearl cotton packaging, rubber and printing etc.
1. PLC controlled, with simple, prompt and accurate operation.
2. The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which can guarantee that the cutting depth at every cutting position is same.
3. The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
4. The central oil supply automatic lubricating system guarantees the service life and precision of machine.
5. Single-side automatic feeding system can be allocated to enhance the production efficiency of machine twice.
6. Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
7. Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.
Optional:
1. Cutting board micro-movement device;
2. Die cutter pneumatic clamp device
II.MAIN TECHNICAL SPECIFICATION

Model	XCLP3-40	XCLP3-50	XCLP3-60	XCLP3-80	XCLP3-100	XCLP3-150	XCLP3-200
Max cutting force	40T	50T	60T	80T	100T	150T	200T
Distance from upper press board to worktable	50-200mm	50-200mm	50-200mm	50-200mm	50-200mm	50-200mm	50-200mm
Cutting area	1600×610mm	1600×800mm	1600×900mm	1600×900mm	1600×900mm	1600×1000mm	1600×1000mm
	1400×610mm	1400×800mm	1400×900mm	1400×900mm	1400×900mm	1400×1000mm	1400×1000mm
Main motor power	3KW	4KW	5.5KW	7.5KW	7.5KW	11KW	11KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Machine weight(approximate)	3000KG	4000KG	5500KG	6500KG	8000KG	10000KG	12000KG
	2800KG	3700KG	5000KG	6000KG	7600KG	9200KG	11200KG

Made to order for your special specifications. For example, the cutting force, cutting area feeding device, and special stroke.
Optional type: double feeding
Package:

Welcome you to inqure for more details or video , thanks !

---
