| PHYSICAL CHARACTERISTICS | ||||

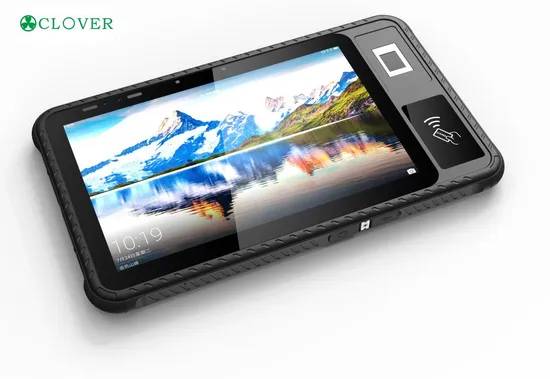

| Model Name | Clover | |||
| Camera | 5 MP front camera,13 MP rear camera with automatic focus and lighting function | |||
| Keyboard | Android Menu,Homepage,Return,Volume,Barcode,ON/OF,Reset | |||
| Headset | 3.5mm audio Interface ,has MIC and Single loudspeader | |||
| LED Indicator Light | Support(ordinary flicker,Call fast flicker,missed calls,charge indicator) | |||
| Flashlight Function | Support,can be used for emergency lighting | |||
| Googleplay store | Support | |||
| Gravity Sensor | Support | |||
| Compass | Support | |||
| Acceleration Sensors | Support | |||
| Gyroscope | Not Support | |||
| Light and Distance Sensor | Support | |||
| Vibrating Motor | Support | |||
| FM | Support | |||
| Lithium Battery | 3.8V,10000mAh , Temperature wide battery,Supporting working 10 hour on -20ºC | |||
| Dimension | 232*158*22mm | |||
| Weight | 810g | |||
| GENERAL CHARACTERSTICS | ||||
| Display Screen | 8 inch LCD screen, 1920x1200 IPS screen, 500nits brightness standard, Ca-pacitive touch screen, | |||
| CPU | Qualcomm MSM8953,8 Core,2GHz | |||
| Operating System | Android 9.0 | |||
| Storage | 4GB RAM+64GB ROM ,Mirco SD Maximum 256GB | |||
| USB Port | Type-C USB port;Support to connect U-Disk/Mouse/Keyboard/OTG lINE | |||
| HDMI | HDMI Port | |||
| OTG | Through OTG can meet 100M network port,network card setup,PPPoE dial-up,web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 serial port | |||
| PROTECTION GRADE | ||||
| Industrial Protection Grade | IP67 | |||
| Drop Grade | Drop resistance from 1.2m | |||
| USER ENVIRONMENT | ||||
| Operating Temp | -20ºC to 55ºC | |||
| Storage Temp | -40ºC to 70ºC | |||
| Humidity | 5%RH to 95%RH(non-condensing) | |||
| DEVELOPMENT ENVIRONMENT | ||||
| SDK | TASEI Software Development Kit | |||
| Language | JAVA | |||
| Environment | Android Studio or Eclipse | |||
| WIRELESS COMMUNICATION | ||||
| Bluetooth | Support 4.2 | |||
| GPS | GPS+BDS+GLONASS,Support high precise GPS module(Ublox M8N/M8P,accuracy is 0.5-3M) | |||
| WIFI | IEEE 802.11a/b/g/n/ac | |||
| 2G/3G/4G | China/India: LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA:B34/B39 EVDO/CDMA:BC0 GSM: 900/18000MHz Europe/Africa: LTE FDD:B1/B3/B5/87/B8/B20/B28A LTE TDD:B38/B40/B41 WCDMA:B1/B2/B5/B8 GSM:850/900/1800/1900MHz America: LTE FDD:B2/B4/B5/87/B8/B12/B13/B14/B25/B26 LTE TDD:B41 WCDMA:B1/B2/B4/B8 GSM:850/1900MHz | |||
| BARCODE READER(OPTIONAL) | ||||
| 2D Barcode | 2D laser barcode scanner: Newlands EM3296,Honeywell 6603 etc | |||
| RFID (OPTIONAL) | ||||
| LF | 125KHz:support to read ID card | |||
| 134.2KHz:support ISO11784/5 protocol ,support to read IC card(FDX) | ||||
| HF | Support NFC/NXP,13.56MHz ISO14443A.B and ISO15693 protocol,reading distance 0-3cm,Tag support type:SR176,SRIX4K(TYPE-B),I-code2,TI RFID Tag-it HF-I,EM4034,Mifare Classic ETC | |||
| UHF | Internal Ray links RLM060 or ThingMagic M6E-NANO,EPC C1 GEN2/ISO18000-6C, Output power 10dbm-30dbm ,Reading distance:1m Ceramic antenna:0.3db(25*25*4mm) | |||
