Product Description
Product Description

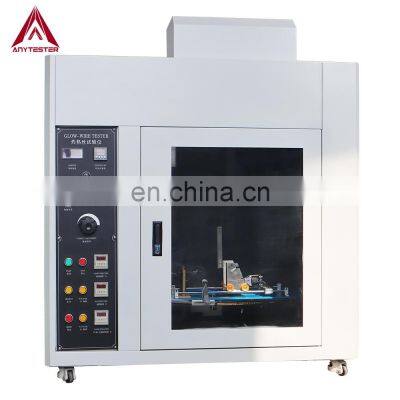

Product DescriptionAT802 Glow Wire Tester uses the specified material Ni/Cr(80/120) and shape wire to testing temperature (550℃~960℃) by largecurrent in 1min, use specified pressure (1.0N) vertical iron the specimen 30s. Then observe if the specimen is ignited or burningtime to determine the fire risk of electric product, insulation material etc.StandardUL 746ADIN 695IEC60695.2~13, 60884-1, 829GB/T 5169.10~13, 4706.1, 2099.1Technical Specification AT810Glow wire4mm ± 0.04mm Ni/Cr(80/120)Glow wire temp.500 ℃ ～ 1000 ℃Test pressure1.0N±0.1NMax iron depth7mm ± 0.5mmSample moving speed10mm /s ～ 25mm /sTest time1s ～ 999.9sTest space0.5m3Background illumination≤ 20LxPower supplyAC220V, 50HzDetails & Features * Using digital instrument control system, import control components; * Fixture made of high quality stainless steel, corrosion-resistant, no rust; * Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable; * One-button time device, to facilitate the use of equipment, simple operation; * Tempered glass observation window, the entire test process can be observedOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPacking & DeliveryPackagingSize(cm)120 (L) * 80 (W) * 96 (D)Weight130Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance before shipmentCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time30~40 days after receiving payment for one containerRelated Products
>>
