Product Details
Product Description
Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: oem
Model Number: net work cable Cat5e UTP
Type: Cat 5e
Number of Conductors: 8
Name: network cable lan cable
type: cat5e lan cable
lan cable type: UTP CAT5E FTP CAT5E
network cable type: CAT6 CAT6A CAT7
lan network cable Manufacturers: YES CHINA LAN CABLE FACTORY
Packaging & Delivery
Packaging Details:Lengths: 100, 200, 305m/roll, 100, 200 and 300 yards/roll or customized
Inner packing: wooden, plastic and paper reel
Outer: carton and pull out box, pallet or customized
Outer packing:
8 rolls/carton or 4 rolls/carton |
Delivery Detail:| 7~15 days |
Specifications
We are professional NETWORK CABLE manufacturers and factory.can produce NETWORK CABLE according to your requirements.LAN CABLE

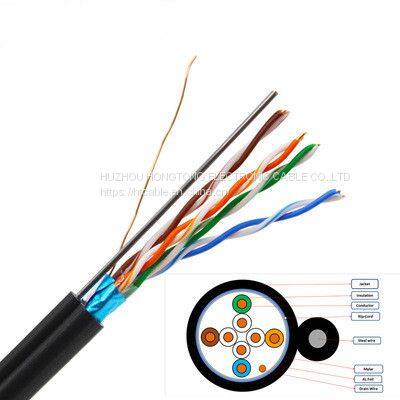

· Cable construction:
o Conductor dimensions: 0.50 and 0.51mm
o Core dimensions: 0.96, 0.95, 0.91 and 0.92mm
o No. of pairs: 4
o Nominal outer diameter: 5.2, 6.0, 6.5, 6.3 and 5.3mm
· Electrical characteristics:
o Frequency: 1, 10, 62.5, 100, 155, 200 and 350MHz
o Attenuation: 2.0, 6.5, 17.0, 22.0, 28.1, 32.4 and 44.9dB/100m
o Impedance: 100Ω
o Return loss: 20, 25, 22, 20, 19 and 17dB
o NEXT: 65.3, 53.3, 38.4, 35.3, 33.3, 31.0 and 27.0dB/100m
o ELFEXT: 63.8, 43.8, 27.8, 23.8, 20.0, 18.0 and 13.0dB/100m
o PS NEXT: 62.3, 47.3, 35.4, 32.3, 29.0, 28.0 and 24.0dB/100m
o PS ELFEXT: 60.8, 40.8, 24.8, 20.8, 17.0, 15.0 and 10.0dB/100m
o Propagation speed(m/s): 0.65c m/s
· Applications: 100 Base-TX, 100 Base-T4, 100VG-AnyLAN, 1000Base-T, ATM
We are professional NETWORK CABLE manufacturers and factory.We can produceNETWORK CABLE according to your requirements.More types of
network cable, communication cable, lan cable, cat5e cable, cat6
CABLE:
COAXIAL CABLES:1) RG TYPE COAXIAL CABLE: RG59, RG6, RG7, RG8, RG11, RG142, RG174, RG178, RG179,RG188, RG213, RG214, RG216, RG223, RG303, RG401, RG402, RG405;
Company Profile
Ningbo Xiayu Import and Export Co., Ltd
We,huzhou hongtong electronic cable Co.,Ltd is a Pioneer manufacturer with more than 20 years experience in the cable industr y in China. We can professionallymanufacture and supply Fire alarm cables,silicone rubber,teflon cable,wire harness, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "UNIRISINGCABLE" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.Our factory is located in zhejiang huzhou which is a beautiful port city.We have very advanced testing machines,including Agilentand HPanalyzer. We carefully test cables under ISO9001-2000 quality management before shipping to the customers.And our quality is always reliable.Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.
