| S905X3 | ||
| CPU | Amlogic S905X3 Quad Core ARM A53 @2GHz | |
| GPU | ARM Dvalin MP2 GPU | |
| Memory | LPDDR4: 2GB(Option: 4GB) | |
| Flash | eMMC:32GB(Option: 64GB ) | |
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G / 5G | |
| BT | BT 4.1; Support Voice Remote | |
| Moudle | Plastic : Black Color | |

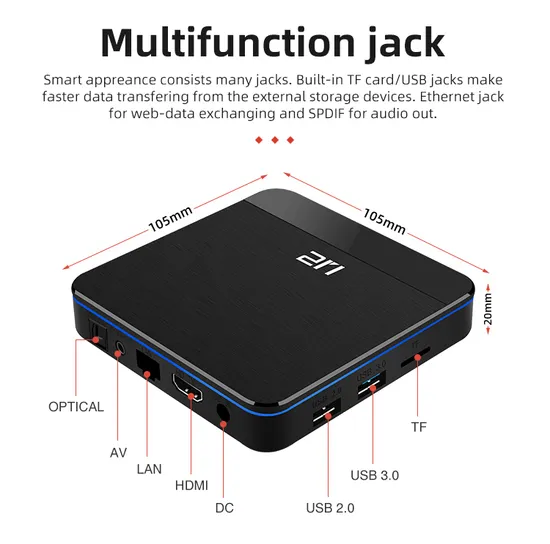

| I/O | 1*HD | HD 2.1 ,Support HD CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output. |
| 1*AV OUT | 480i/576i standard definition output | |
| 2*USB | 1* USB 3.0 ;1*USB 2.0 | |
| 1*IR Reciver | Remote Reciver Connect | |
| 1*RJ45 | Ethernet Interface;Support 10/100/1000M | |
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |
| Power | DC 5V/2A;LED indicator,Working :Blue; | |
| Software | ||
| OS | Android 8.1/9.0 | |
| Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4Kx2K @60fps+1x1080P @60fps Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4Kx2K @60fps - H.265 HEVC MP-10 @L5.1 up to 4Kx2K @60fps - AVS2-P2 Profile up to 4Kx2K @60fps - H.264 AVC @L5.1 up to 4Kx2K @30fps - H.264 MVC up to 1080P @60fps - MPEG-4 ASP @L5 up to 1080P @60fps (ISO-14496) - WMV/VC-1 SP/MP/AP up to 1080P @60fps - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P @60fps - MPEG-2 MP/HL up to 1080P @60fps (ISO-13818) - MPEG-1 MP/HL up to 1080P @60fps (ISO-11172) - RealVideo 8/9/10 up to 1080P @60fps - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch Digital microphone PDM input with programmable CIC, LPF & F, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM | |
| Image | HD JPEG,BMP,GIF,PNG,TIF | |
| Language | English French German Spanish Italian etc multilateral languages | |
| Appliactions | ||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |
| Apps | Apps download freely form android market,amazon app store etc. | |
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |
| Others | Support Email,office suit etc. | |
| Accessories | 1,HD cable *1 2,IR Remote *1 3,User Manual *1 4,Package box *1 | |
