G652D FRP High Tension Strengrh Outdoor Fiber Optic Cable (GYFTC8Y)

Product Description

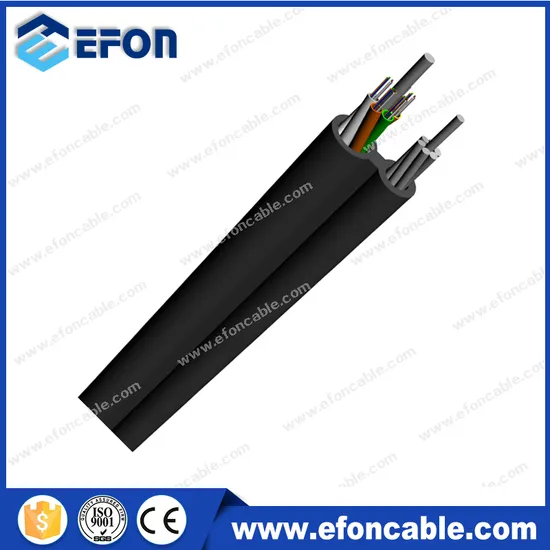

GYFTC8Y FRP G652D Figure 8 aerial corning fiber optic cable / outdoor fiber optic cable
Product Description The loose tube are made of high modulus plastics(PBT), which are filled with water resistant gel. Loose tube are stranded around the non-metallic strengthen member(FRP) . Outer sheath is made of
UV resistance PE jacket. Figure-8 self-supporting structure provide high tensile strength and enables
easy and cost saving aerial installations. The FRP self-supporting member gives desirable tensile
resistant and makes the cable to be All dielectric construction which allows hanging on electric poles
and power lines with up to 12KV.
Features:

Up to 288fibers. All-dielectric construction Water blocking, UV resistance, High and low temperature resistance. Adopt strict process and raw materials control guarantee the lifespan more than 30 years.
Application:

For hanging on poles.
Products Standard
Mechanical Performance :
Max Tension Performance : IEC 60794-1-2-E
Max. Operation Tension : IEC 60794-1-2-E1
Crush Test : IEC 6079 -1-2-E3
Impact Test : IEC 60794-1-2-E4
Repeated Bending : IEC 60794-1-2-E6
Torsion Test : IEC 60794-1-2-E7
Cable bend : IEC 60794-1-2-E11A
Attenuation Coefficient : ITU-T G.652
Structural Test : IEC-60793-1-20
Environmental Performance
Temperature Cycling : IEC 60794-1-2-F1
Water Penetration : IEC 60794-1-2-F5B
Filing Compound Flow : IEC 60794-1-E14
Structure and Technical Specifications

Fiber Count		8-30	32-60	62-72
Diameter of Self support member (FRP)		1.5mm	1.5mm	2.1mm
Diameter of Loose tube(mm)		1.8	2.1	2.1
Diameter of Cable(mm) (3.5FRP)		7.4*14.4	8.0*15.0	8.0*16.5
Gross weight(Kg/Km)		75	80	120
Min. bending radius		Static 10xD Dynamic 20xD
Max. tensile force, N Short term		1000N 2000N 4000N
Max. tensile force, N long term		500N 1000N 1500N
Max Crush Resistance(N/100mm)		Short term/ Long term 1000N/300N
Allowable T emperatures	operation	-40°C - +60°C
	storage	-50°C - +70°C
	install.	-20°C - +50°C

---
