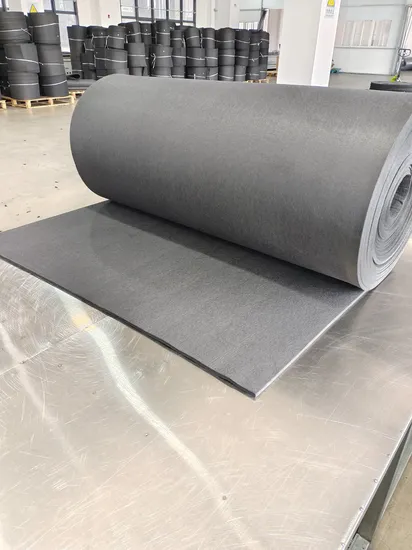

Thickness 3, 5, 8, 10mm Soft Graphite Felts for The Thermal Insulation

Product Description

thickness 3,5,8,10mm soft Graphite Felts for The Thermal Insulation
A PAN Carbon/Graphite Soft Felt /Pan Based PSF1 PSF2 PSF 3 PSF 4

Treat Temperature oC	1100	1800	2200	2600
Bulk density g/cm3	0.15	0.12	0.11-0.12	0.10-0.12
Carbon content %	≥95.5	≥97.2	≥99.95	≥99.99
Ash content %	≤0.7	≤0.3	≤0.01	≤0.005

Carbon/Graphite Rigid Felt /Pan Based PRF 1 PRF 2 PRF 3 PRF 4

Treat Temperature oC	1100	1800	2200	2600
Bulk density g/cm3	0.23-0.26	0.24-0.25	0.18-0.24	0.18-0.22
Carbon content %	≥95	≥97	≥99.9	≥99.99
Ash content %	≤0.75	≤0.4	≤0.02	≤0.008

Special property requirements specially produced.
Anticorrosion cover available(Graphite cloth, Graphite foil, Pitch Painting, etc)
Machine work done to drawing
Size Carbon/Graphite Soft Felt / Pan Based Length Width Thickness

Size Range	0-24m	0-1.35m	0-13 mm
Standard Size	12m	1/1.2m	3/5/6/8/10/12/12.7 mm

Carbon/Graphite Rigid Felt / Pan Based Length Width Thickness

Size Range	0-1.7m	0-1.5m	18-600 mm
Standard Size	1/1.5m	1/1.5m	20-600 mm

B RAYON Carbon/Graphite Soft Felt / Rayon Based RSF1 RSF2

Treat Temperature oC	1100	1800
Bulk density g/cm3	0.12	0.08
Carbon content %	≥91	≥99
Ash content %	≤1.0	≤0.1

Special property requirements specially produced.
Carbon/Graphite Soft Felt / Rayon Based Length Width Thickness

Size Range	0-24m	0-1.2m	0-13 mm
Standard Size	12m	1/1.2m	3/5/6/8/10/12/12.7 mm

Anticorrosion cover available(Graphite cloth, Graphite foil, Pitch Painting, etc)
Machine work done to drawing
C PITCH Carbon/Graphite Rigid Felt / Pitch Based HRF1

Treat Temperature oC	2200
Bulk density g/cm3	0.16
Carbon content %	≥99.98
Ash content %	≤0.02

Special property requirements specially produced.
Carbon/Graphite Rigid Felt / Pitch Based Length Width Thickness

Size Range	0-1.7m	0-1.5m	18-600 mm
Standard Size	1/1.5m	1/1.5m	20-600 mm

graphite felt:
pan graphite felt. Feature: Low ash content / High carbon content / Low gas evolution Excellent heat insulation / Low thermal conductivity Long life time / Good anticorrosion / High oxidation resistance Easy Handling / Good Strength Application: Heat insulation materials Electrical elements Absorptive materials Reinforcing structure for C/C composite components and other products
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.

---
