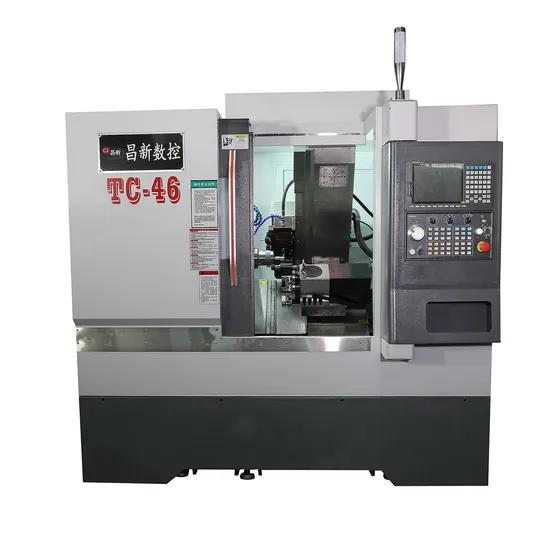

Universal CNC Milling Turning Lathe Machine for High Precision Metal Parts Tc-46

Product Description

Product Description
Universal CNC milling turning lathe machine for metal
Machine Details:
Configuration & Parameters:

S.N.	Name	Models and specifications	Brand	Power (KW)	Description	Origin
1	Control System	F01-22TB-STD	Syntec			Taiwan
2	C-axis motor and drive (spindle)	S08-M09-06C4-0B0	Syntec	6.6KW-8.2KW		Taiwan
3	X axis motor and drive	S08-AM11-40B-F3	Syntec	2.4KW		Taiwan
4	Z axis motor and drive	S08-AM11-40-F3	Syntec	2.4KW		Taiwan
5	Y axis motor and drive	S08-AM5-40B-F3	Syntec	1.1KW		Taiwan
6	A axis motor and drive	S08-AM8-40-F3	Syntec	1.7KW		Taiwan
7	B axis motor and drive	S08-AM5-40-F3	Syntec	1.1KW		Taiwan
8	Magnetic ring encoder	S08-GSKM-242-S	Syntec			Taiwan
9	Precision spindle	A2-5	Kin Chun			Taiwan
10	X axis ball screw	3208 end plug double nut			Hiwin,PMI,King	Taiwan
11	Z axis ball screw	3208 end plug double nut			Hiwin,PMI,King	Taiwan
12	X axis ball guide	30MM			Hiwin,PMI,HTPM	Taiwan
13	Z axis ball guide	30MM			Hiwin,PMI,HTPM	Taiwan
14	Power Head	4+4+4Y	Xu Teng			China
15	Turret	Type 63 eight-station turret	Usta			China
16	Rotary cylinder	TF-646	Zhongyi			China
17	Spindle V-belt	UNITTA XPZ1222			A set of 4	Japan
18	Automatic lubrication system	BE2232F-210X				China
19	One hydraulic station assembly	Taiwan VP20 vane pump, solenoid valve, pressure reducing valve, air-cooled heat dissipation, pressure adjustment 0.4-3.5MPa, tank installed 46# Great Wall anti-wear hydraulic oil 30KG				Taiwan/China
20	Cooling system	Capacity 900X290X150 water tank				China
21	Machine cover	Cold plate production, surface powder spraying treatment				China
22	Electrical components	Fully equipped with Schneider electric and air switch				Germany
23	Accessories	Spring chuck seat - 1pcs Collet - 2pcs Tie rod -1pcs ER25 nut - 12pcs ER25 collet - 12pcs 450W water tank - 1set Lathe controller operation manual -1pcs Lathe program manual -1pcs Servo drive manual -pcs
CNC Lathe Parameters and Precision Table
S.N.	Items			Unit	Specifications
1	Through hole of barrel spindle unit			mm	Φ56
2	Maximum turning diameter of bed			mm	Φ520
3	Spindle	Spindle end face form			A2-5
4		Spindle maximum speed		r/min	5000
5		Spindle set speed		r/min	1-4000
6		Maximum bar diameter		mm	Φ45
7	Height of worktable and spindle center			mm	85
8	Bed inclination			degree	35°
9	X effective stroke			mm	1050
10	Z effective stroke			mm	450
11	X/Z axis rapid traverse setting speed			mm	24
12	X/Z axis screw			mm	3208
13	X/Z axis linear guide			mm	30
14	Machine size (length×width×height)			mm	2320*1768*2135
15	Machine weight			KG	3500
Machine Accuracy
S.N.	Main inspection items				Precision
1	Roundness of workpiece				0.003mm
2	Precision				0.005mm
3	Cylindricity of workpiece				0.012/200mm
4	X/Z axis repeat positioning accuracy				0.005mm
5	X/Z axis absolute positioning accuracy				0.005mm
6	Spindle index repeat positioning accuracy				≤20 arc seconds, ie 0.006°
7	Absolute positioning accuracy of spindle indexing				70 arc seconds, or 0.02°
8	Rail precision grade				P
9	Screw precision grade				C3 level
10	Cone runout of collet				≤0.015mm
11	Spindle radial runout				0.0025mm

FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and soon.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.

---
